Product Features
1200 Nits Screen
Equipped with a 10.1-inch IPS display at 1280*800 resolution and 1200nits ultra-high brightness, this rugged tablet delivers clear visibility under direct sunlight for outdoor vehicle use.
Real-time Communication
With built-in GPS, 4G, WiFi, BT and NFC communication modules, this tablet is convenient for tracking and management.
Rugged and Durable Design
The VT-10 Pro rugged vehicle tablet boasts IP67 waterproof and dustproof rating as well as MIL-STD-810G shock and vibration certification. Its heavy-duty rugged design guarantees stable continuous operation under harsh working conditions.

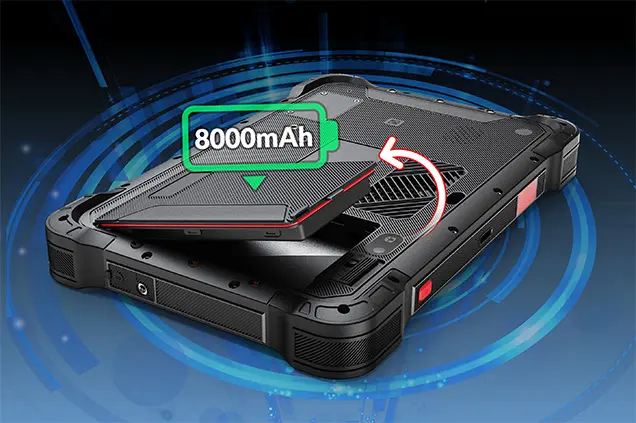

8000 mAh Removable Battery
Support quick battery replacement, helping minimize downtime and maintain continuous operation.
CAN Bus Data Reading
Compatible with CAN 2.0b, SAE J1939 and OBD-II protocols, the VT-10 Pro rugged tablet realizes stable CAN Bus data reading. It simplifies real-time engine data acquisition for system integrators and is well suited for fleet management, agriculture, and other vehicle-based applications.
Wide-Temperature Operation
Working steadily between -10°C and 65°C and can be stored from -20°C to 70°C, this rugged tablet adapts to diverse temperature environments for worldwide vehicle-mounted applications.

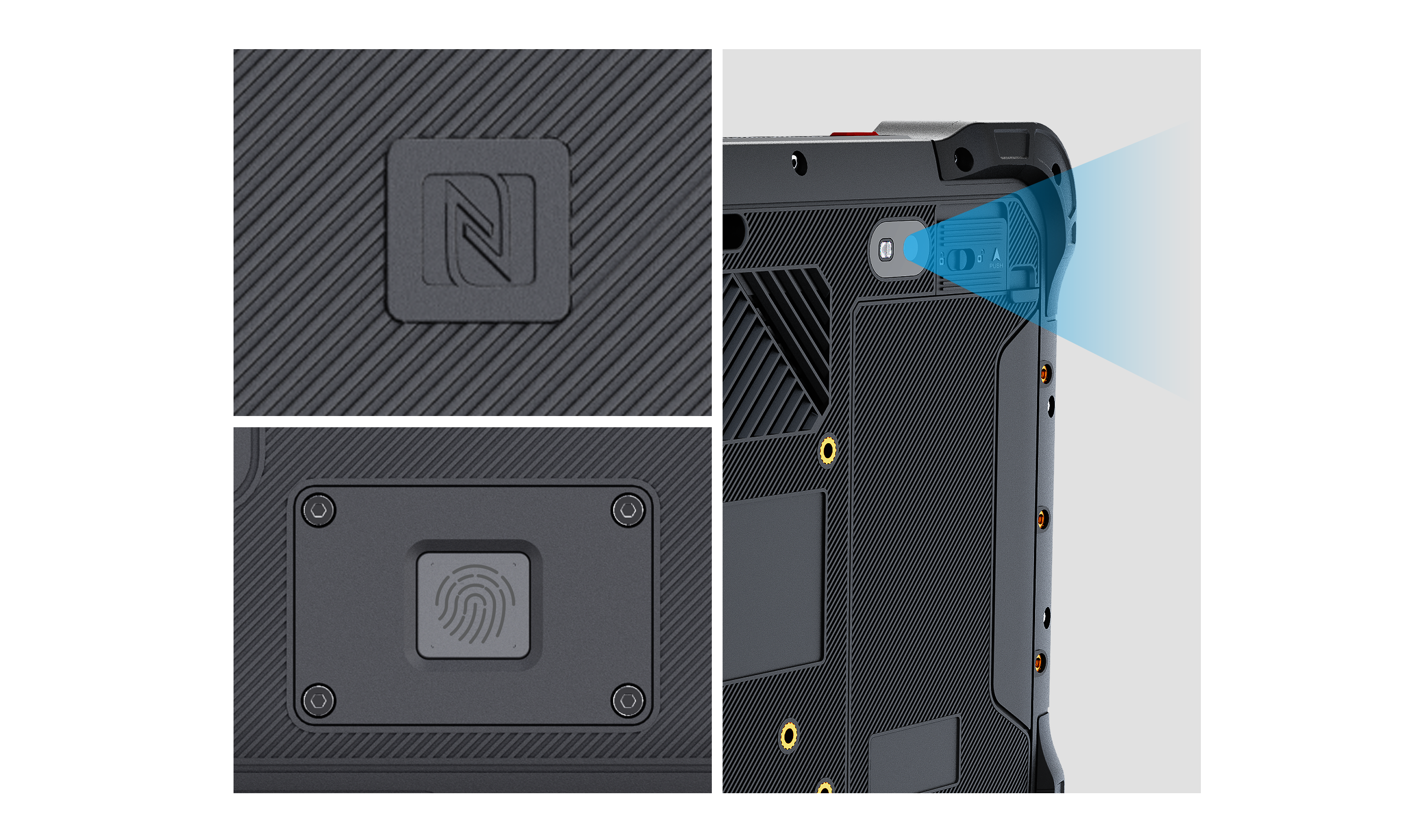

Barcode Scanner (Optional)
Offer optional functional modules including cameras, fingerprint readers, barcode scanners and NFC modules, fully adapting to warehouse inventory, logistics and on-site operation workflows.

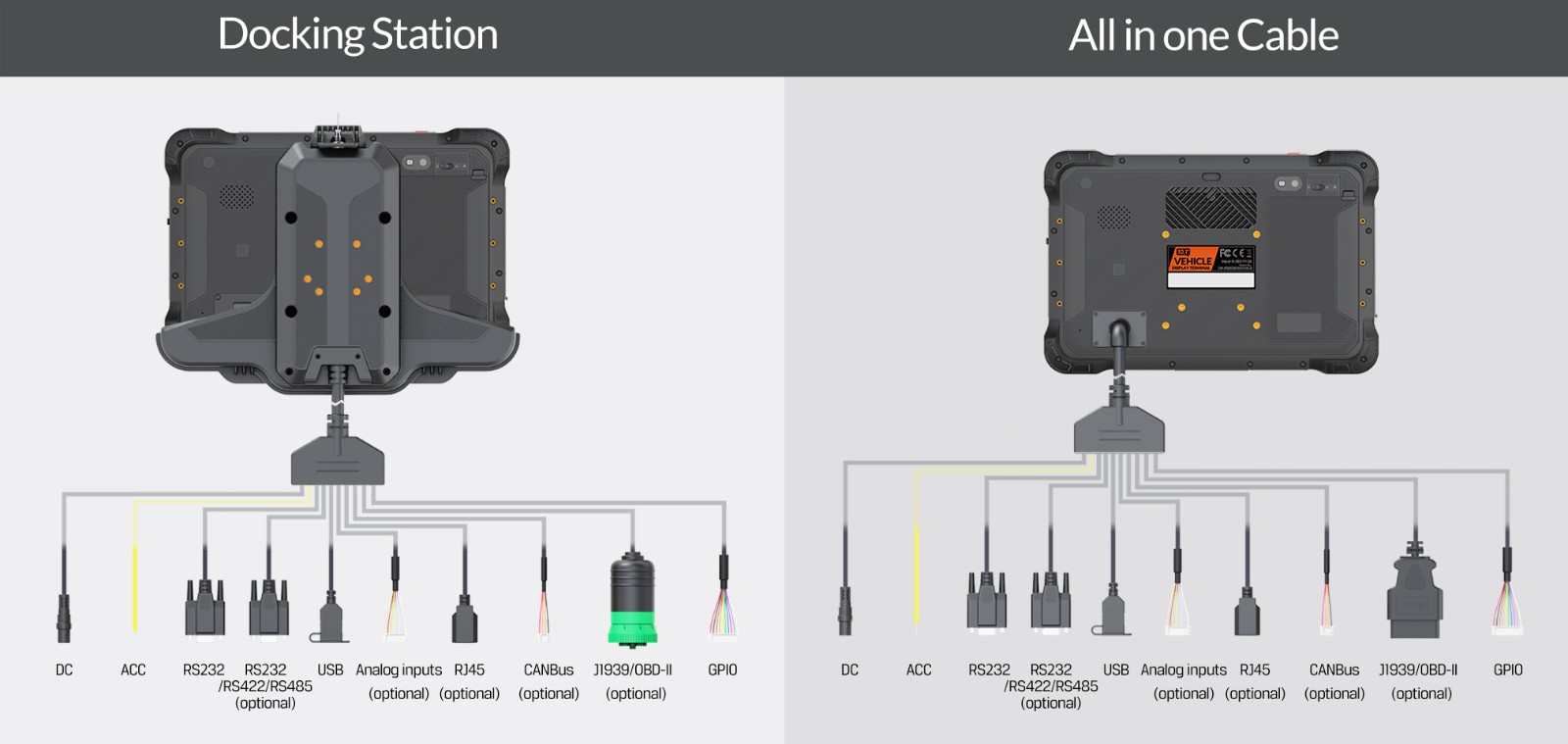

Extended Cable
Specification
| System | Communication | ||
| CPU | Qualcomm Cortex-A53 Octa-core Processor, 1.8GHz | GNSS | GPS/GLONASS |
| GPU | Adreno 506 | 2G/3G/4G | US Version: LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD: B41 WCDMA: B2/B4/B5 |
| OS | Android 9.0 | EU Version: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900 MHz | |
| RAM | LPDDR3 2GB (default)/4GB (optional) | WLAN | IEEE 802.11 a/b/g/n/ac, 2.4GHz/5GHz |
| Storage | eMMC 16GB (default)/64GB (optional) | Bluetooth | 4.2 BLE |
| Functional Module | NFC (Optional) Operates at 13.56MHz (HF) | Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s | |
| LCD | 10.1 Inch HD, 1280× 800, 1200 nits | MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 All peer-to-peer modes | |
| Screen | Multi-point Capacitive Touch Screen | Card Emulation Mode (from host): NFC Forum T4T, (ISO/IEC 14443 A&B) at 106 kbit/s, T3T FeliCa | |
| Audio | Integrated microphone，Integrated speaker 2W, 85dB | Extended Cable | |
| Sensor | Acceleration, Gyro sensor, Compass, Ambient light sensor | USB 2.0 (Type-A) | ×1 |
| Camera (Optional) | Front: 5.0 megapixel | RS232 | ×2 |
| Rear: 16.0 megapixel with LED light | ACC | ×1 | |
| On Tablet Interface | Power | ×1 | |
| USB Type-C | Type-C 3.0 (for data transfer, support OTG) | CAN 2.0b/J1939/OBD-II | 1 of 3 (optional) |
| Micro SD Slot | Micro SD card slot×1, support up to 1T | GPIO | Input×2, Output×2 (default); GPIO×6 (optional) |
| SIM Slot | SIM card slot×1 | Analog Inputs | ×3 (optional) |
| Earphone Jack | 3.5mm headphone jack | 1-wire | ×1 (optional) |
| Docking Connectors (Docking station version only) | POGO PIN×24 | RJ45 | ×1 (optional) |
| 1D/2D Scanner (Optional) | All major 1D barcodes, PDF417, QR Code M1/M2/Micro and Data Matrix, etc. | RS485 | ×1 (optional) |
| Fingerprint (Optional) | Capacitive, area sensor | RS422 | ×1 (optional) |
| Environmental Reliability | Vedio In | ×1 (optional) | |
| IP Rating | IP67 (IEC 60529) | Physical Characteristics | |
| Vibration Test | MIL-STD-810G | Power | DC8-36V (ISO 7637-II compliant) |
| Operating Temperature | -10°C ~ 65°C (14°F ~ 149°F) | Battery | 3.7V, 8000mAH removable battery |
| Storage Temperature | -20℃~70℃ (-4°F-158°F) | Dimensions | 277×185×31.6mm (W×H×D) |
| Weight | 1357g | ||

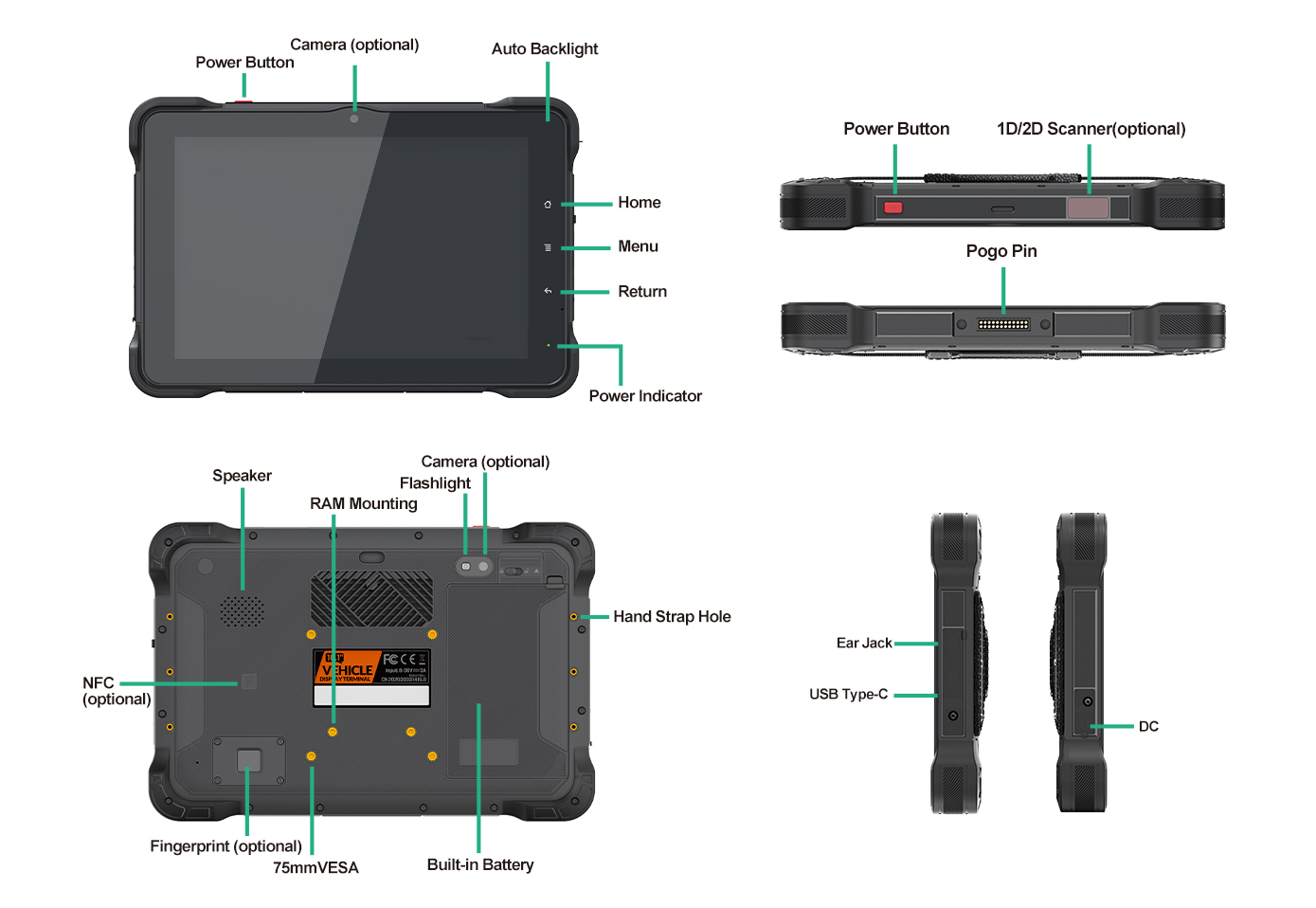

Product Details
Accessories

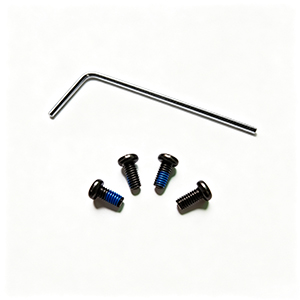

Allen Wrench and Screws
USB to Type-C Cable
Power Adaptor

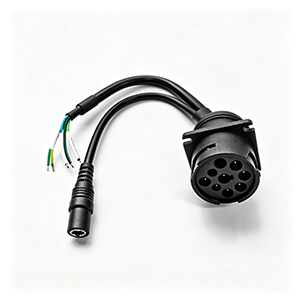

J1939 Female to Open Wire

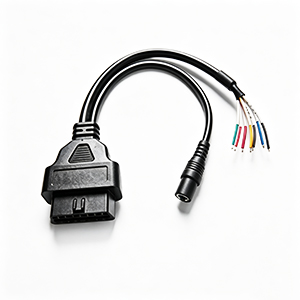

OBD-II Female to Open Wire

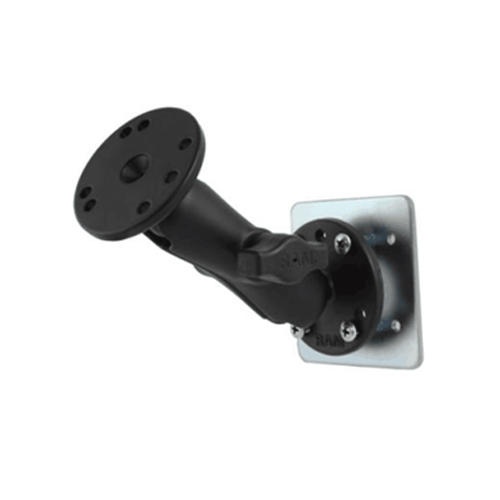

RAM 1.5'' Double Ball Mount
