Product Specification
Model | AHD-1080ADAS |
| Image Sensor | GC 2053 CMOS Sensor |
| Signal System | PAL |
| Effective Pixels | 1920 (H)×1080 (V) |
| FPS | 25fps |
| IR Night Vision | No IR LED |
| Lens | 6mm Fixed Lens |
| Viewing Angle | Horizontal: 54°, Diagonal: 42°, Vertical: 30° |
| Video Output | AHD 1080P |
| Power | DC 9V-16V |

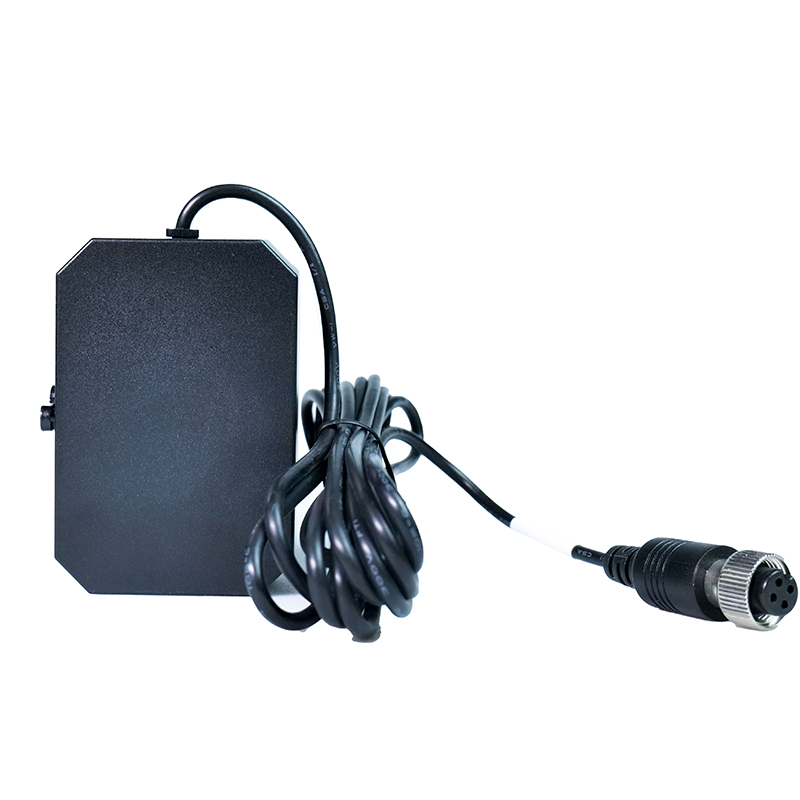

| Output Interface | 4-Pin Screw-Locked Aviation Connector |
| DMS AI Functions | FCW forward collision warning, LDW lane departure warning headway, distance monitoring alert, ect. |
| Cable Length | 2.5m |
| IP Rating | IP67 |
| Operating Temperature | -20℃ to 70℃ |
| Operating Humidity | ≤90%RH |
