Product Specification

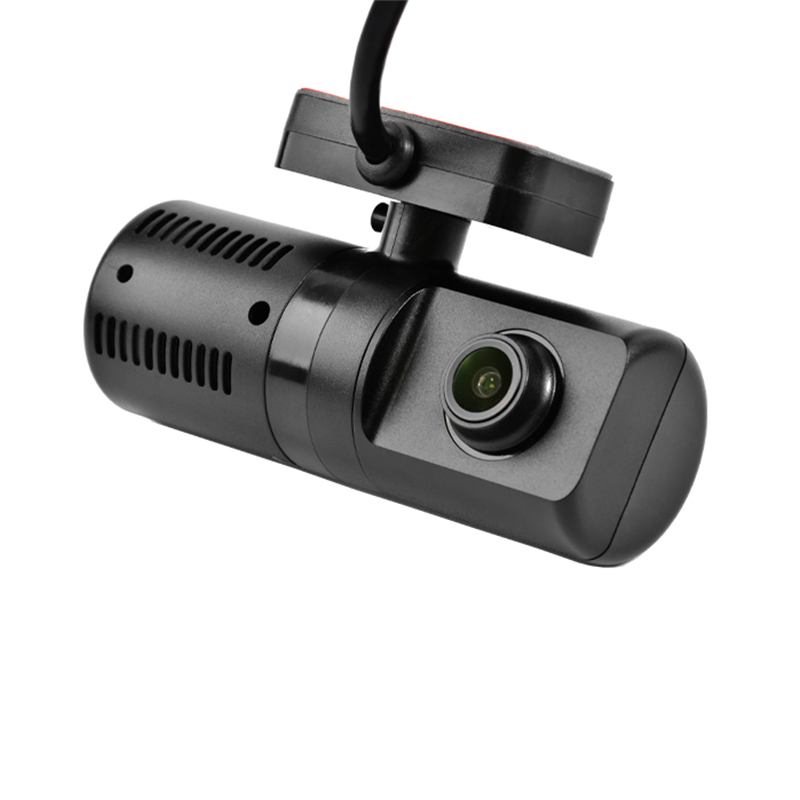

Model | AHD-1080Dual |
| Image Sensor | Front lens: 1/2.9" 1080P AHD; Interior lens: 1/2.9" 1080P AHD |
| Scan Frequency | PAL: 50Hz/NTSC: 60Hz |
| Effective Pixels | 1920(H)×1080(V) |
| FPS | 720P@25fps/720P@30fps |
| Illumination | 0.01Lux@F1.2, 0.001Lux@F1.2 |
| Lens | 2.1mm F=1.2 |
| Lens Angle | 120° |
| Infrared Light | 940 invisible light, IR CUT |
| Singal to Noise Ratio | ≥45dB |
| Gamma | 0.45 |
| Synchronization | Internal |
| Video Output | 1.0 factory default AHD 720P |
| AGC | Auto |
| Power | DC12V±10% |
| Current | 60mA+10%; 120mA+10% after the lamp is |
| Output Interface | 4-Pin Screw-Locked Aviation Connector |
| Balance Noise Reducation | Support 2D0NR |
| Backlight Compensation | Auto |
| IP Rating | IP68 |
| Operating Temperature | -30℃ to 75℃ |
| Storage Temperature | -40℃ to 80℃ |
| Operating Humidity | ≤95%RH |
| Dimension | 109×44.23×60.5mm(L×W×H) |
| Weight | 200g |
