Product Specification

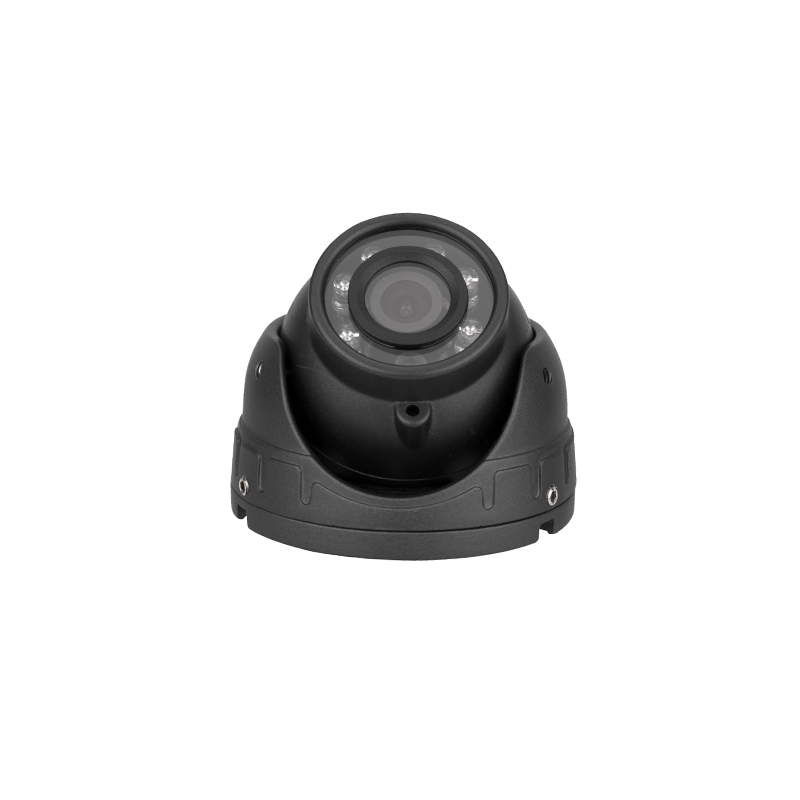

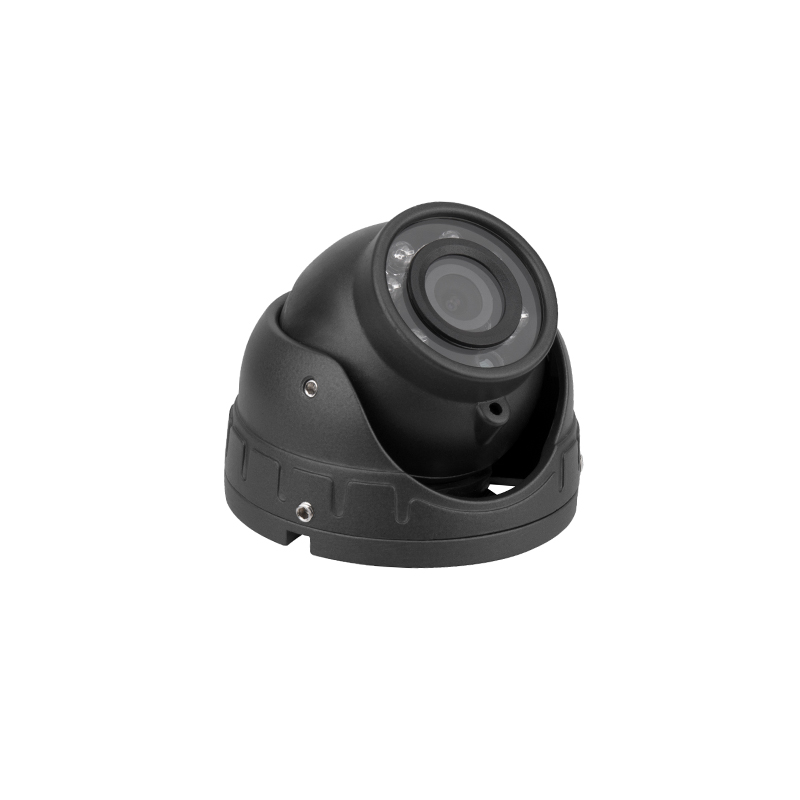

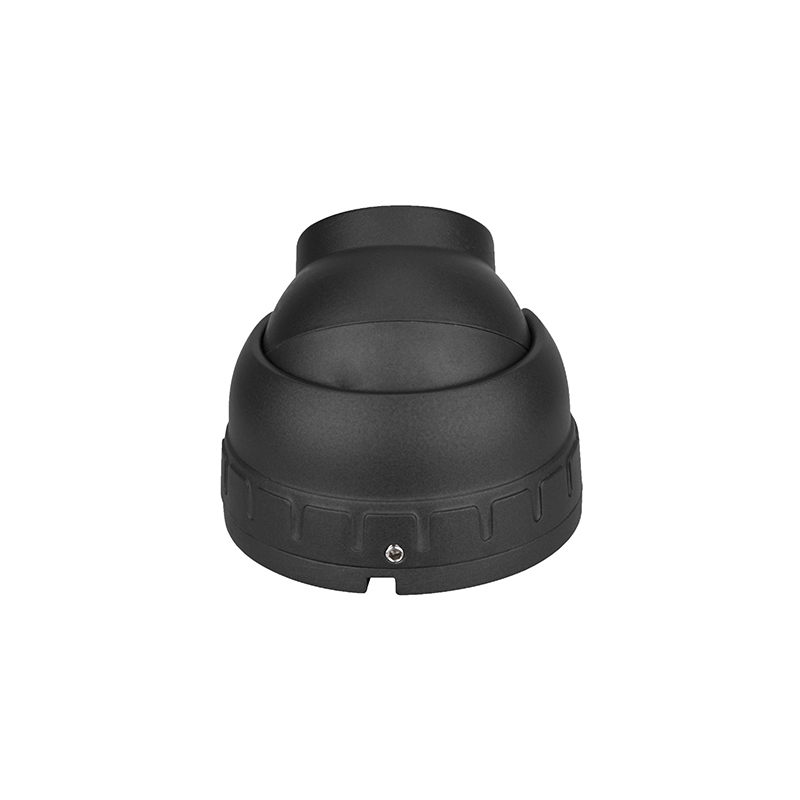

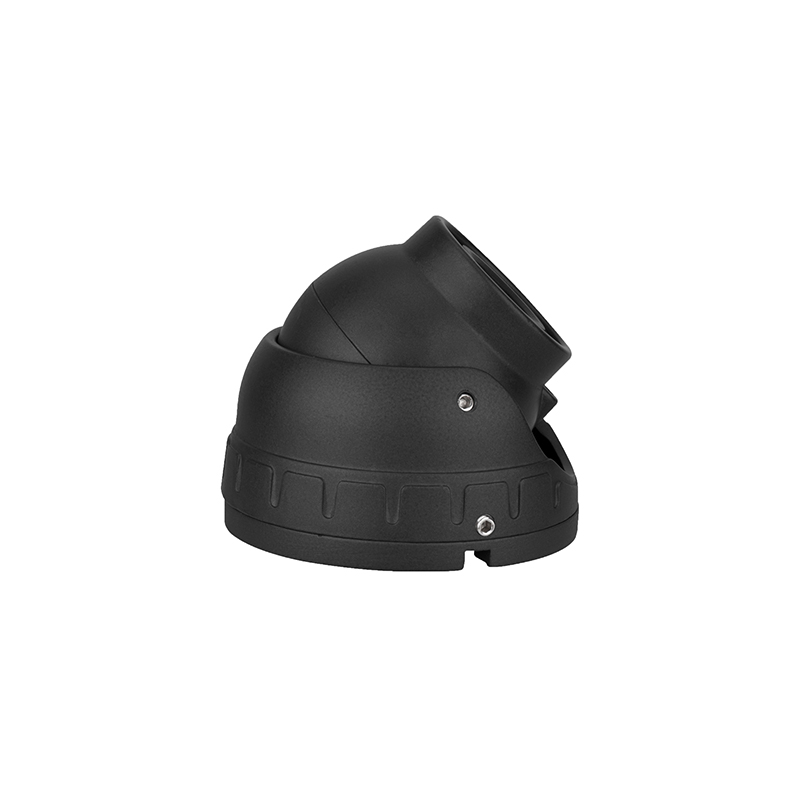

Model | AHD-720D |
| Image Sensor | 1/2.7" 1064 |
| Signal System | PAL/NTSC |
| Effective Pixels | 1280 (H)×720 (V) |
| FPS | 720P@25fps/720P@30fps |
| Illumination | 0.01Lux@ (F1.2,AGC ON), 0LUX with IR |
| Lens | 2.8mm, 3.6mm (optional) |
| Viewing Angle | Horizontal: 85°, Diagonal: 120°, Vertical: 65° |
| Shutter | Auto |
| Day & Night Mode | Color by day, B/W by night |
| Synchronization | Internal |
| Video Output | AHD |
| Power | DC12V |
| Output Interface | 4-Pin Screw-Locked Aviation Connector |
| Exposure Control | Brightness/Exposure mode/Gain |
| White Balance | ATW/MWB |
| Image Quality Adjustment | Contrast/Sharpness/Color Gain/DNR/Format/DWDR |
| IP Rating | IP65 |
| Operating Temperature | -30℃ to 70℃ |
| Operating Humidity | ≤90%RH |
| Dimension | 69.1×69.1×54.7mm(L×W×H) |
| Weight | 151g |
