Product Specification

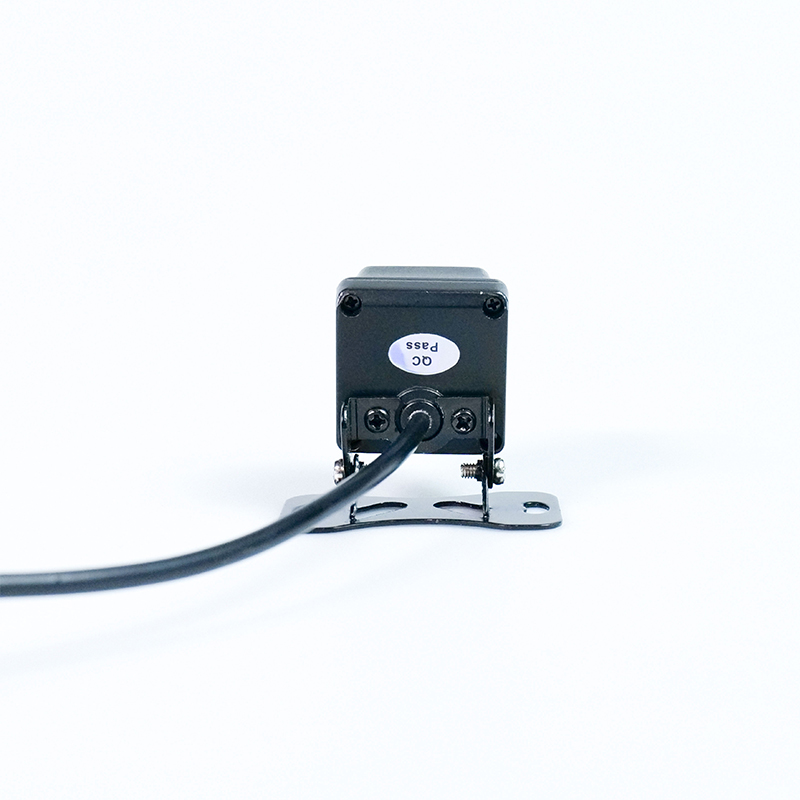

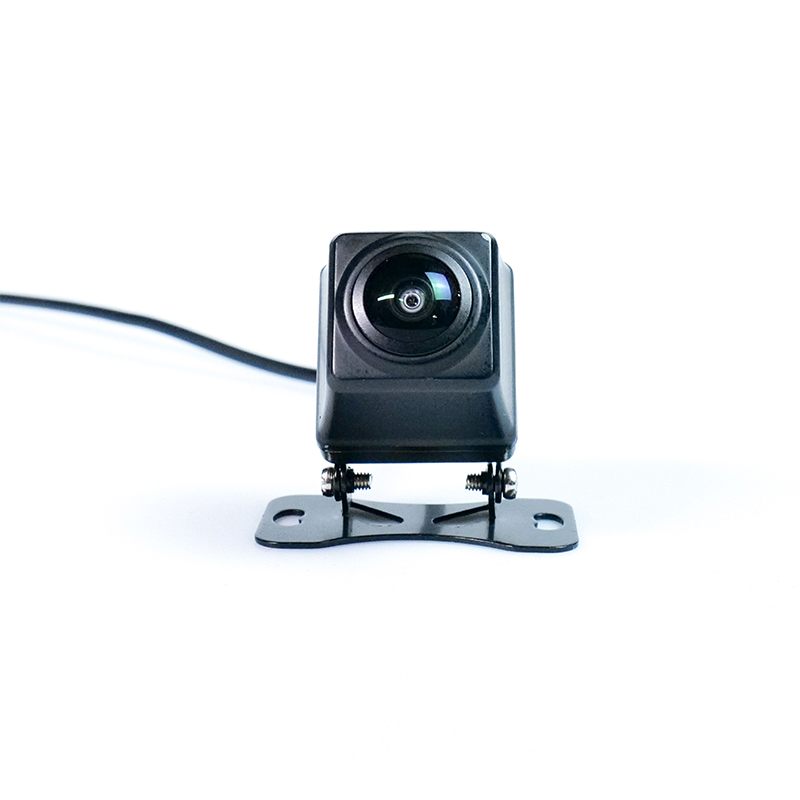

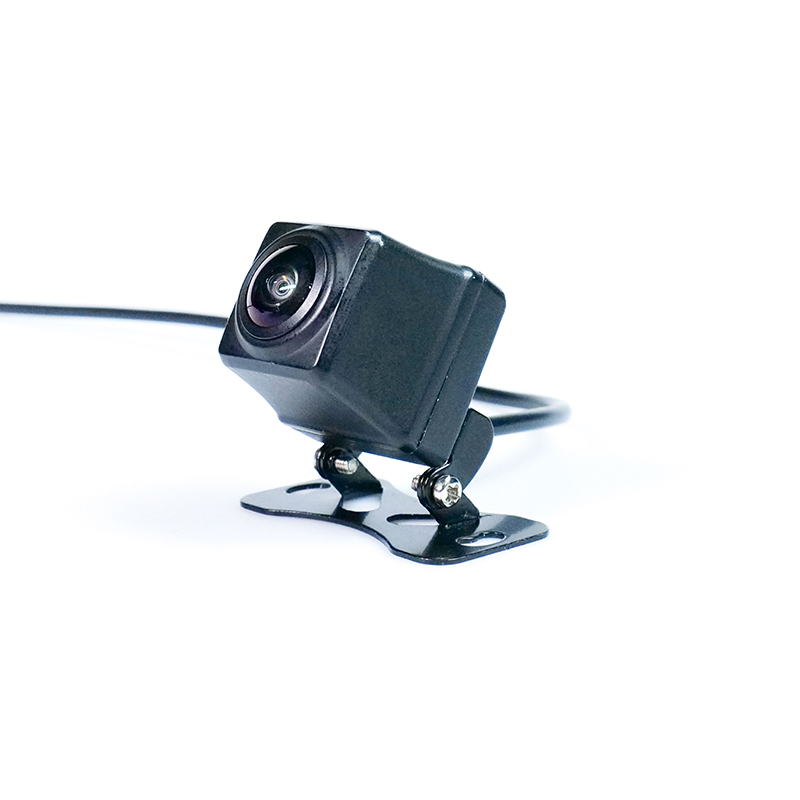

Model | AHD-720Mini |
| Image Sensor | 1/3.6" 2053 |
| Signal System | PAL/NTSC |
| Effective Pixels | 1280 (H)×720 (V) |
| FPS | 720P@25fps/720P@30fps |
| Illumination | 0.001Lux@ (F1.2, AGC ON) |
| Lens | 1.8mm |
| Viewing Angle | Horizontal: 150°, Diagonal: 190°, Vertical: 100° |
| Shutter | Auto |
| Day & Night Mode | Color by day, B/W by night |
| Synchronization | Internal |
| Video Output | Default AHD (TVI/CVI/CVBS Customized) |
| Power | DC12V |
| Output Interface | 4-Pin Screw-Locked Aviation Connector |
| Exposure Control | Brightness/Exposure mode/Gain |
| Image Quality Adjustment | Contrast/Sharpness/Color Gain/Format/DWDR |
| IP Rating | IP67&IP68 |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | ≤90%RH |
| Dimension | 21.8×21.8×28mm(L×W×H) |
| Weight | 58g |
