Product Specification

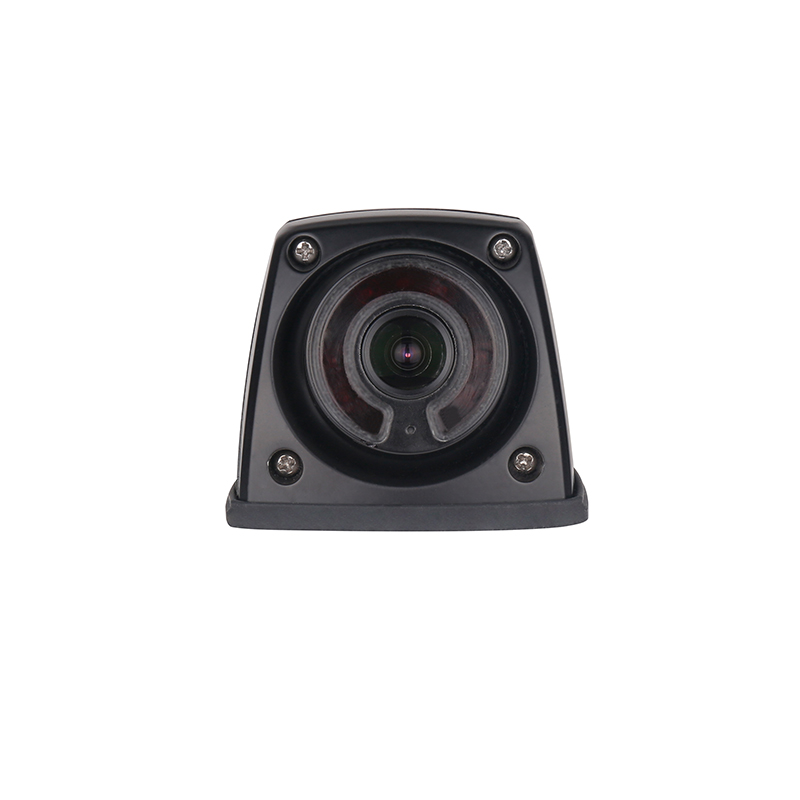

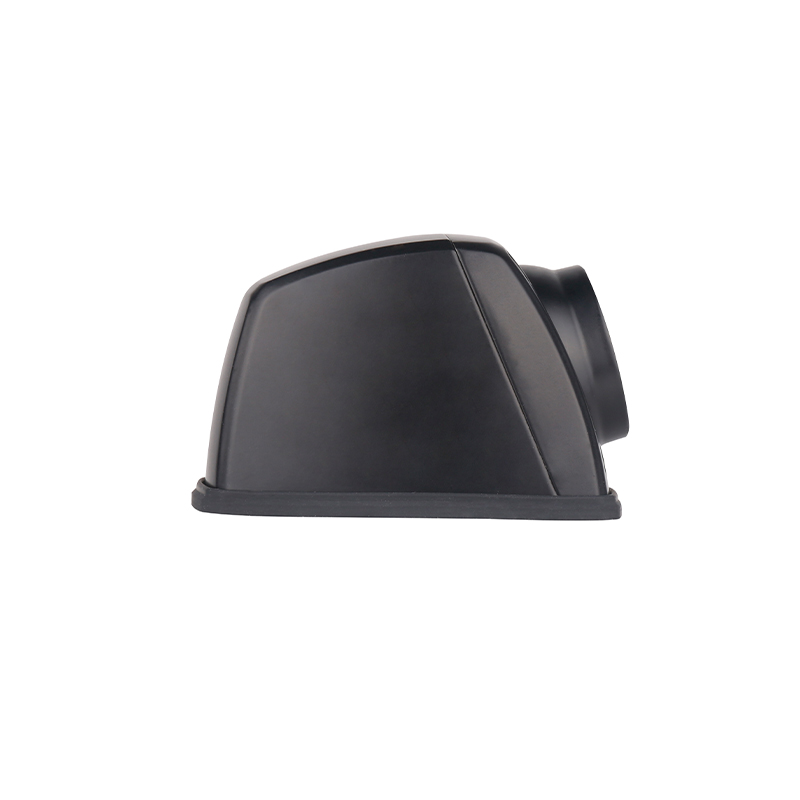

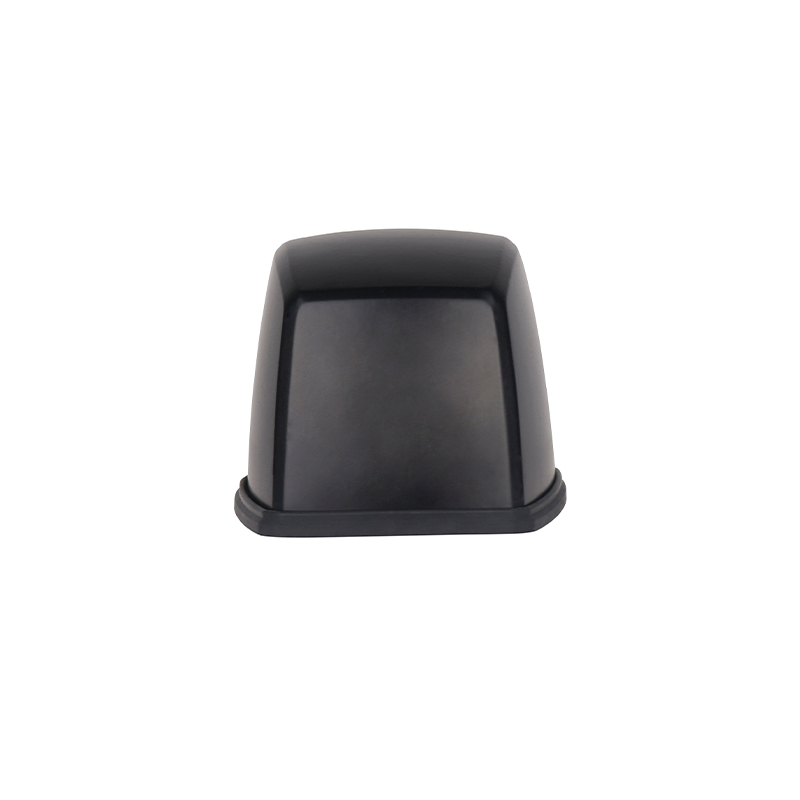

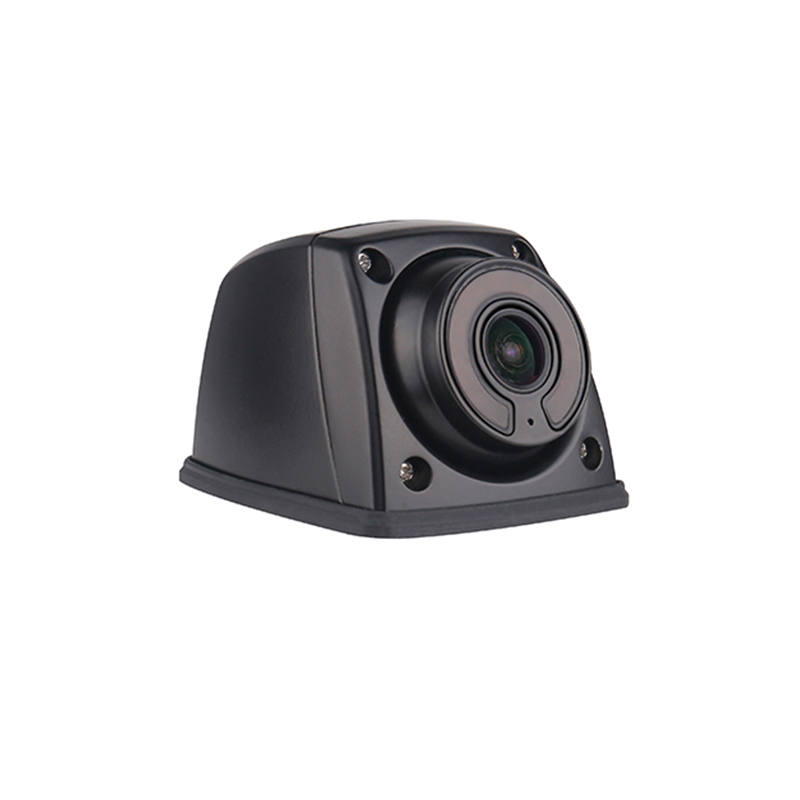

Model | AHD-720S |
| Image Sensor | 1/2.9" GC2053 COMS Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1280 (H)×720 (V) |
| FPS | 720P@25fps/720P@30fps |
| Illumination | 0.01Lux@F1.2 |
| Lens | 2.8mm |
| Viewing Angle | Horizontal: 80°, Diagonal: 110°, Vertical: 65° |
| Shutter | 1/50(1/60)sec. To 1/100000sec. (Auto) |
| Day & Night Mode | Fill color without IR LED |
| Singal to Noise Ratio | ＞48dB |
| Synchronization | Internal |
| Video Output | HD video output 1.0vp-p75Ω |
| Power | DC12V±10%; 250mA±10% |
| Output Interface | 4-Pin Screw-Locked Aviation Connector |
| Balance Noise Reducation | Support 2D0NR |
| Backlight Compensation | Auto |
| IP Rating | IP68 |
| Operating Temperature | -30℃ to 70℃ |
| Operating Humidity | ≤95%RH |
| Dimension | 55×73×45mm(L×W×H) |
| Weight | 150g |
