Product Features

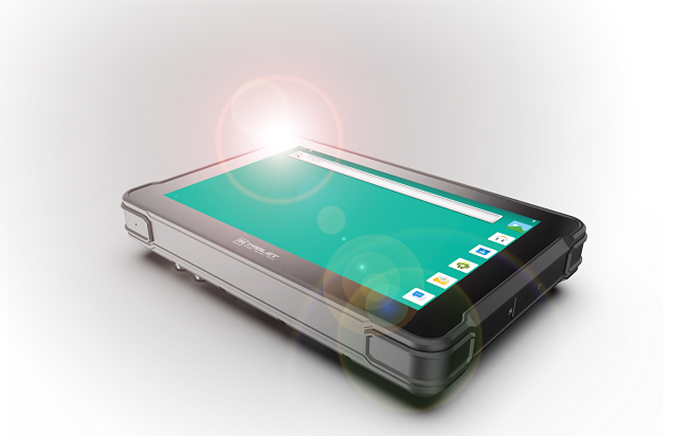

Highlight Screen
The 10-inch 1200-nit display ensures clear visibility and eliminate operation interruption even in the direct and strong sunlight.
Wet Touch and Glove Touch Screen
Support wet touch and glove touch function, ensuring excellent responsiveness even when the operator's figures are wet or they are wearing gloves.
Support Qt Platform
Qt platform provides a cross-platform C/C++ graphical user interface application development framework, which has strong scalability and is convenient for software development.
Rich Functional Interfaces
Support rich interfaces such a sRS232, RJ45, RS485, CAN, GPIO and two custom function buttons. Make it highly integrated with rich functions to be applied to various application scenarios.
ISO 7637 -II
Apply DC9-36V wide voltage power input design. Comply with ISO 7637-II transient voltage protection standard, which can withstand up to 174V 300ms vehicle surge impact.

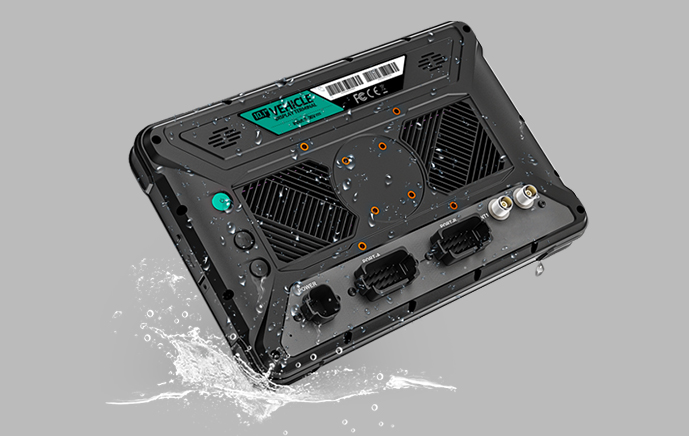

Rugged and Reliable Design
Complying with IP66&IP67 rating, which can withstand high-pressure water flow impact and soaking in water at a depth of 1meter.
Wide Temperature Design
This tablet can operates in temperatures ranging from -20°C to 65°C and be stored in temperatures from -30°C to 75°C. It can be sold and used in most parts of the world.
Two Outlet Formats
Specification
| System | Communication | ||
| CPU | NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6GHz | GNSS | GPS/GLONASS (optional) |
| GPU | 1×shader, Vivante GC320, Vivante GCNanoUltra | WLAN | 802.11a/b/g/n/ac; 2.4GHz&5GHz |
| OS | Yocto / Debian 11.0 | 2G/3G/4G | LTE, HSPA+, UMTS, EDGE, GPRS, GMS (optional) |
| RAM | LPDDR4 2GB (default)/4GB (optional) | Physical Characteristics | |
| Storage | eMMC 16G (default)/64GB (optional) | Power | DC9-36V(ISO 7637-II compliant) |
| Storage Expansion | Micro SD 128G | Battery | 10F Supercapacitor |
| Functional Module | Dimensions | 273×183×49mm (W×H×D) | |
| LCD | 10.1 Inch, 1280× 800, 1200 nits | Weight | 1.6kg |
| Screen | Multi-point Capacitive Touch Screen, supporting glove and rain touch (optional) | Environments | |
| Audio | Integrated microphone，Integrated speaker 2W, 90dB | Vibration Test | MIL-STD-810G |
| Sensor | Acceleration, Gyro sensor, Compass, Ambient light sensor | IP Rating | IP67 (IEC60529) |
| Interface | Type-C, Compliant with USB 2.0, (for data transfer;support OTG) | Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F） |
| USB 2.0 (Type-A) | Storage Temperature | -30°C ~ 70°C (-22°F ~ 158°F) | |
| 3.5mm headphone jack | |||

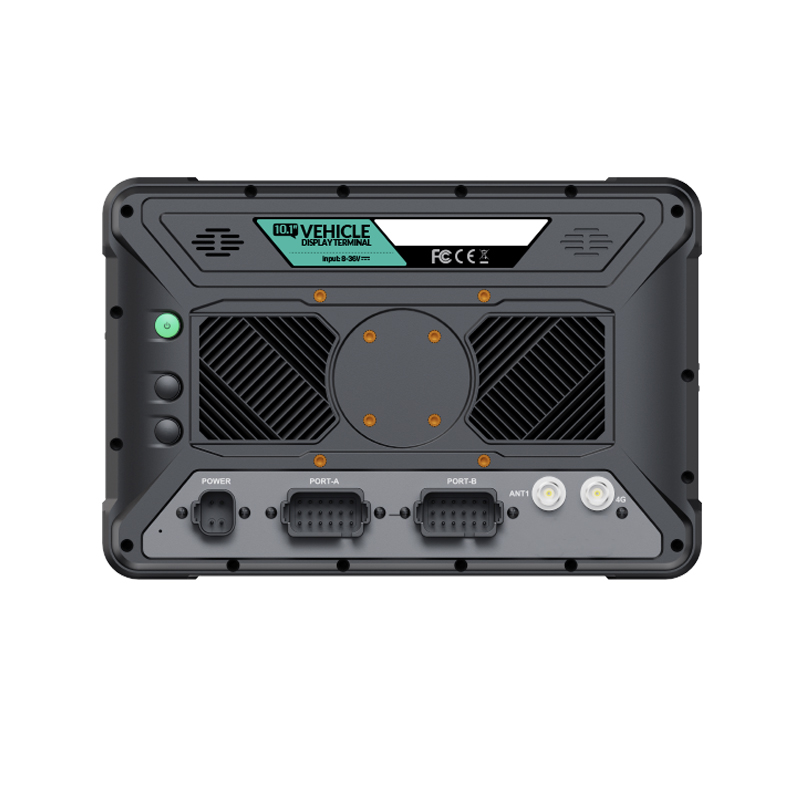

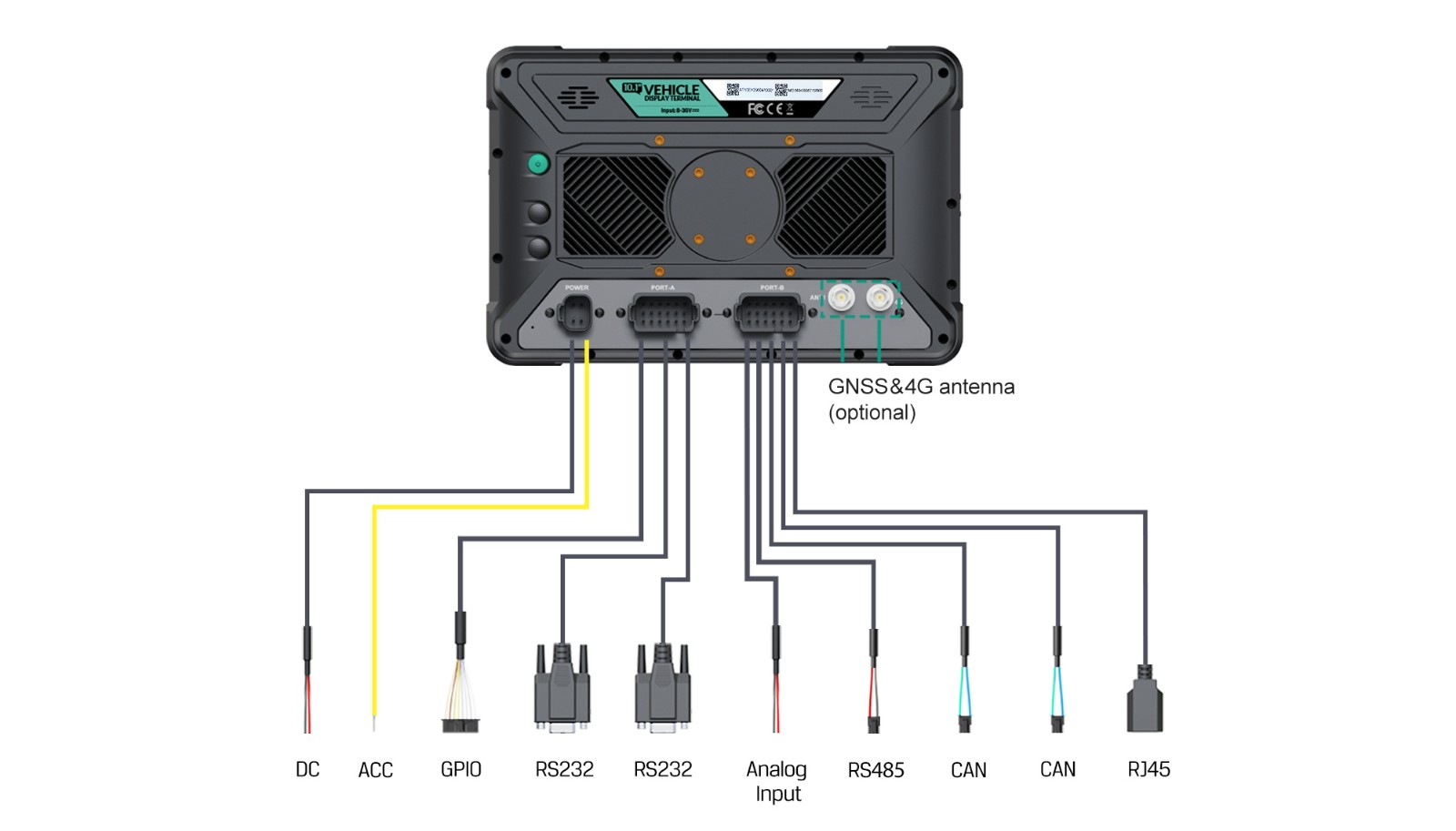

| Extended Cable (Amphenol Connector) | |||
| RS232 | ×2 | GPIO (Positive Trigger Input) | ×1 |
| ACC | ×1 | RJ45(10/100) | ×1 |
| Power | ×1 | RS485 | ×1 |
| CANBUS | ×1 | Analog Input | ×1 |

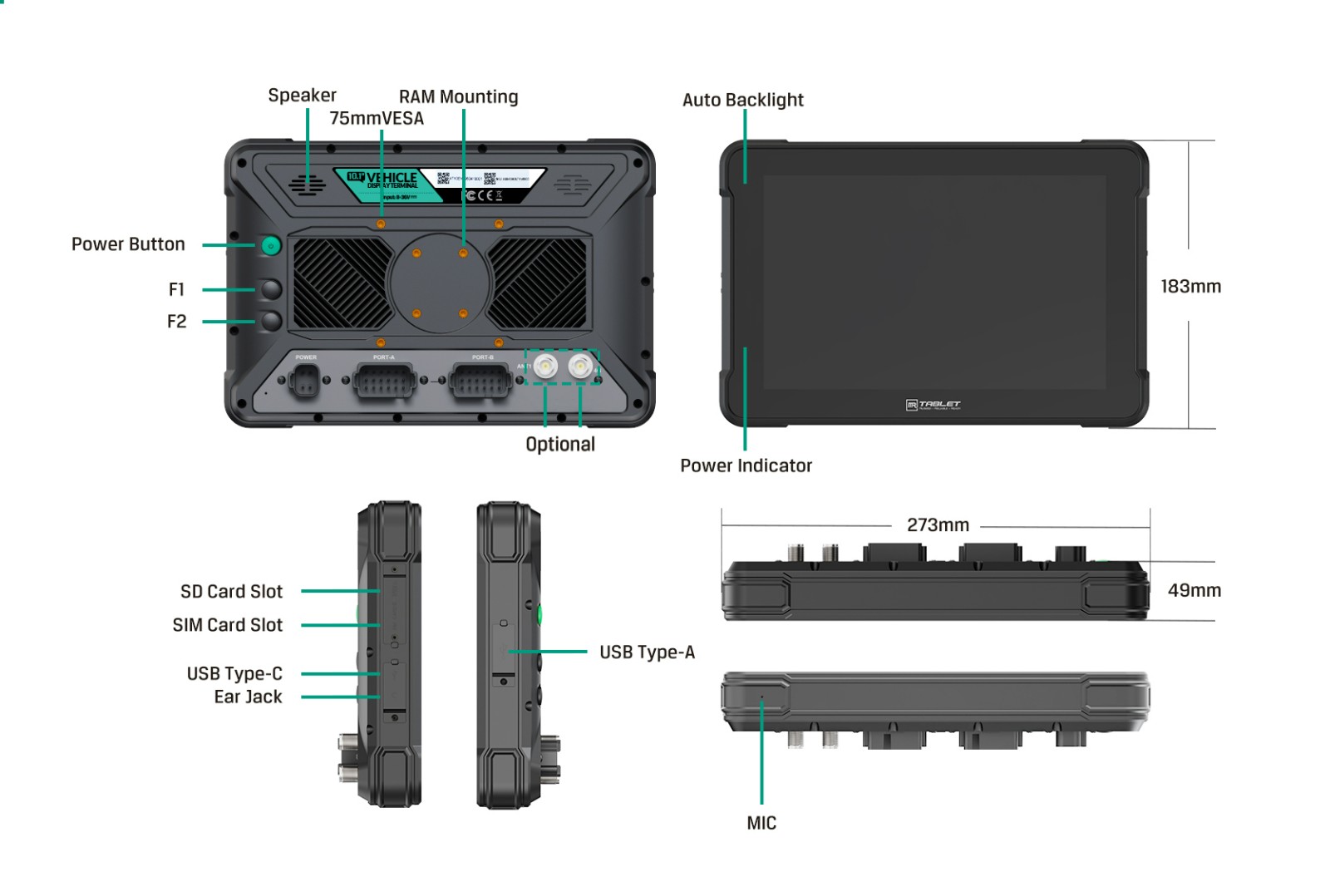

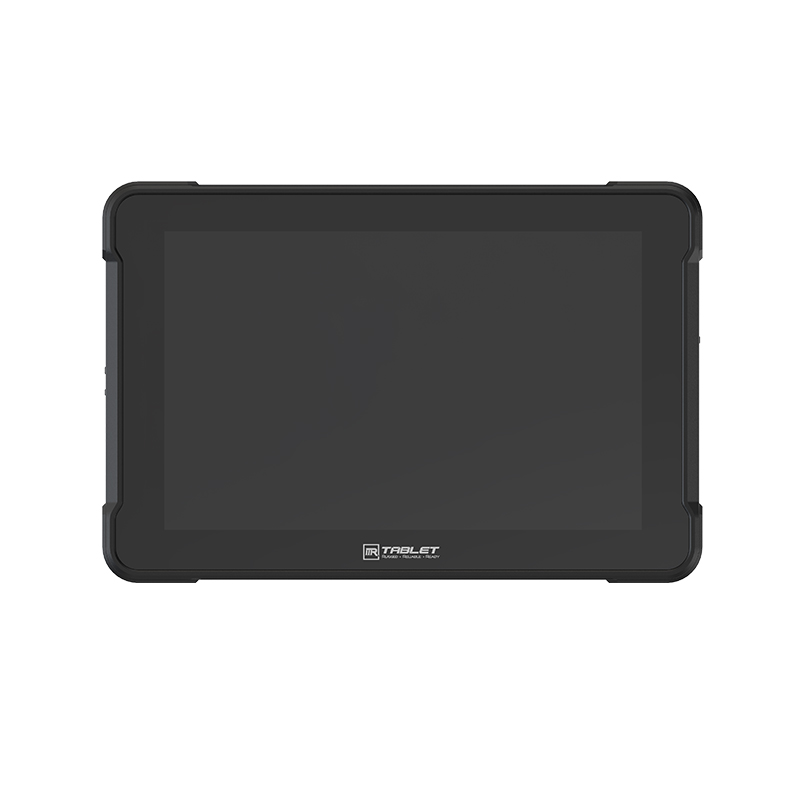

Product Details
Accessories

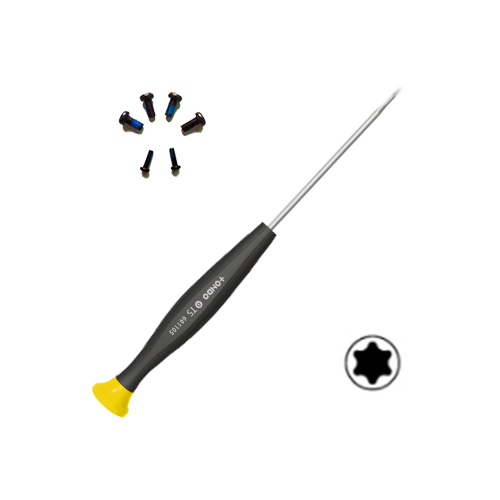

Torx Screwdriver & Screws

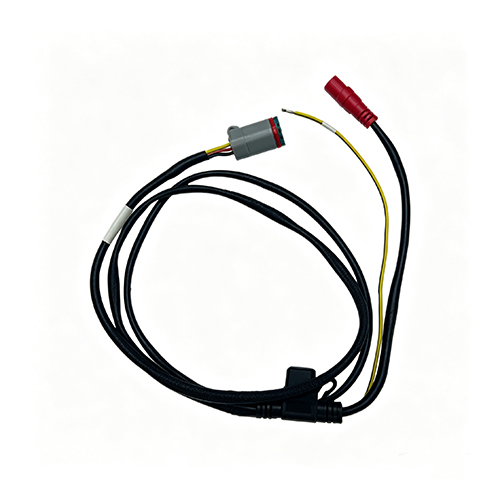

Power Cable

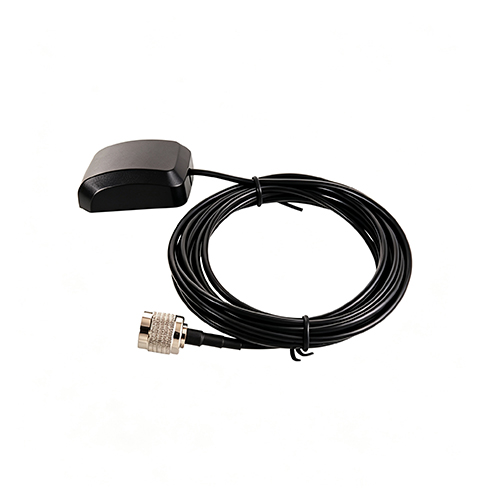

GNSS Antenna (Optional)

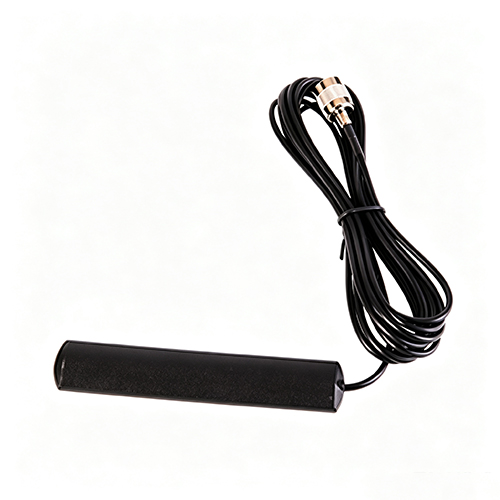

LTE Antenna (optional)

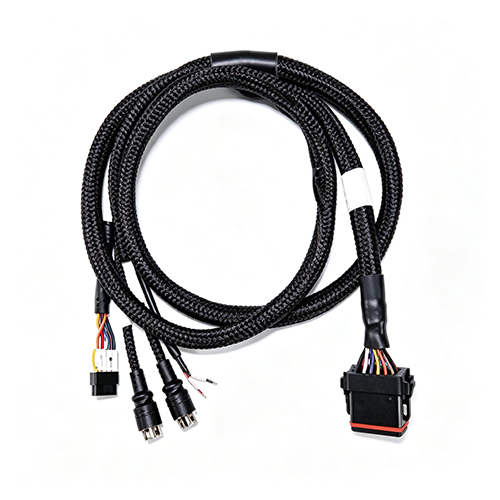

Extended Cable (optional)

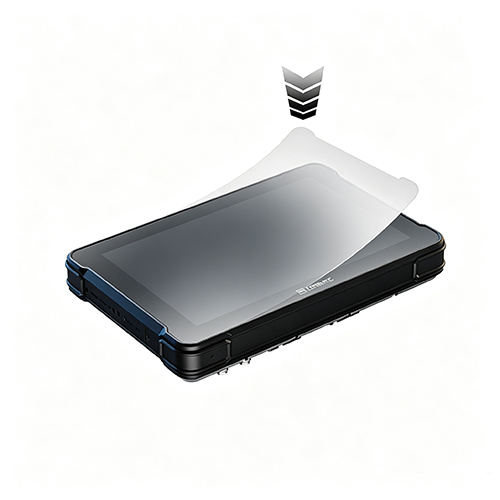

Anti-glare Film (optional)
Power Adaptor (Optional)

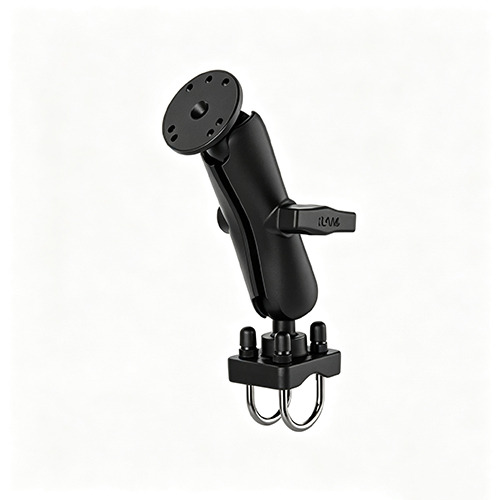

Double U-Bolt Rail Mount RAM-101U-235 (optional)
