Product Features

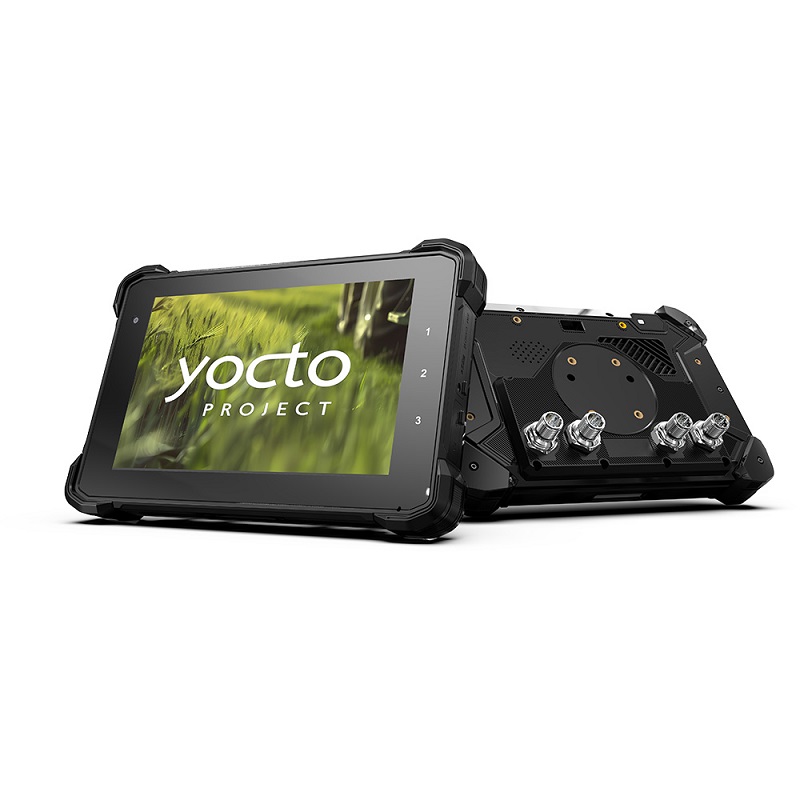

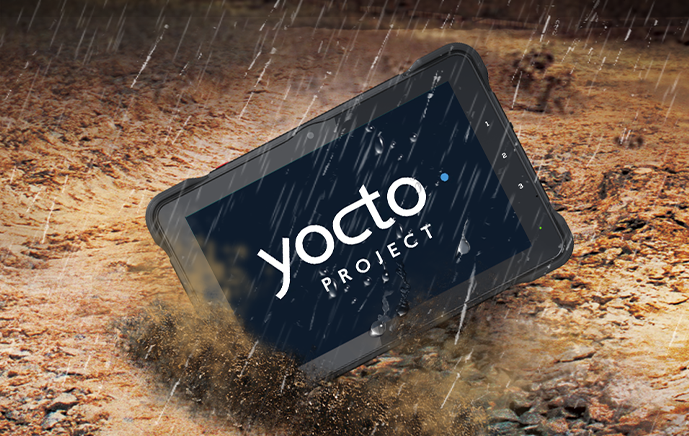

Yocto System
Based on Yocto system, it supports rich tools and processes for engineers to develop software more effectively according to their specific needs.
Qt Platform
Support Qt 5.15 platform and various applications written based on Qt. Provide test demo programs written in Qt, which makes interface debugging and development more convenient and flexible.
Real-time Communication
Built-in Wi-Fi/Bluetooth/GNSS/4G functions making tracking and management of device status easier.
IP67 Rugged Design
Comply with IP67 rating and MIL-STD-810G standard, it can resist the damage of flow, vapour, dust and vibration, guaranteeing the application in a variety of harsh environments like logistics, mining and agriculture.
ISO 7637 -II
Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC 8-36V wide voltage power supply.
Strong Compatibility
With rich interfaces of RS232, CAN Bus, RS485, GPIO etc., customizable to meet different needs from users.

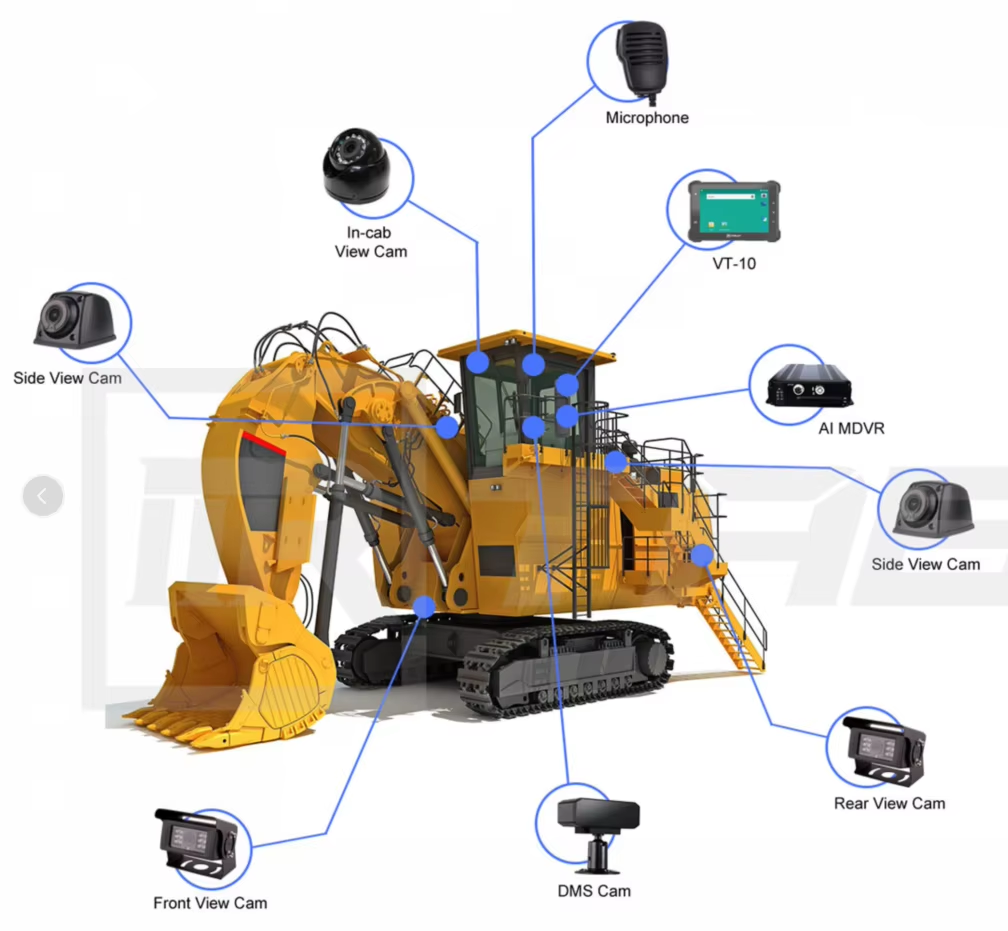

Wide Application Field
With rugged design and rich interfaces, guarantee the application of IoT, IoV and some industries in the harsh environments.

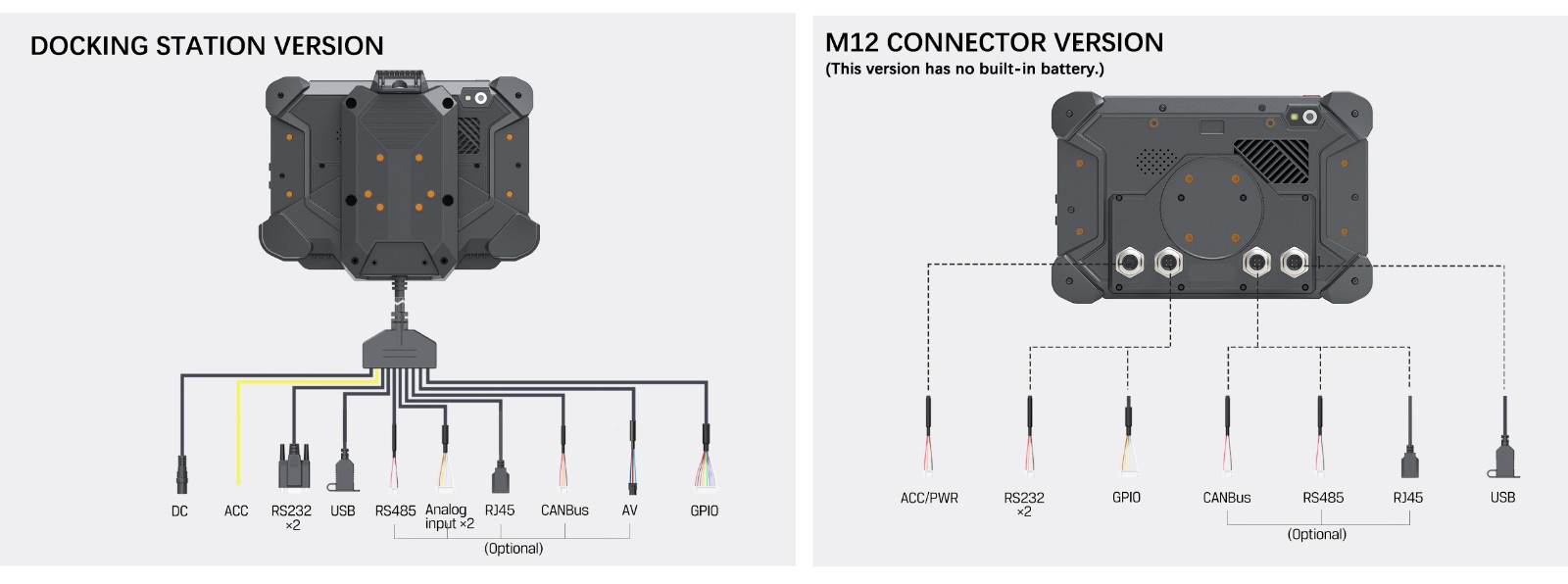

Extended Cable
Specification
| System | Communication | ||
| CPU | Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz | Bluetooth | 2.1 EDR/3.0 HS/4.2 LE/5.0 LE |
| GPU | Adreno 702 | WLAN | 802.11a/b/g/n/ac; 2.4GHz&5GHz |
| OS | Yocto | GNSS | NA Version: GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS NavIC, L1+L5; Internal Antenna |
| RAM | LPDDR4 3GB | EM Version: GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS, L1; Internal Antenna | |
| Storage | eMMC 32GB | 2G/3G/4G | US Version: LTE FDD:B2/B4/B5/B7/B12/B13/B14/B25/B26/B66/B71 LTE TDD: B41 |
| Functional Module | EU Version: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 | ||
| LCD | 7 Inch IPS Panel, 1280×800, 1000cd/m² | WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: 850/900/1800/1900 MHz | |
| Screen | Multi-point Capacitive Touch Screen | NFC (optional) | Supports Type A,B, FeliCa, ISO15693,etc. 13.56MHz (HF) |
| Audio | Integrated microphone; build-in speaker 2W | Physical Characteristics | |
| Sensor | Acceleration, Gyro sensor, Compass, Ambient light sensor | Power | DC8-36V (ISO 7637-II compliant) |
| Interface | USB3.1 ×1 (can not be used simultaneously with USB Type-A) | Battery | 3.7V, 5000mAh battery (only for docking station ver.) |
| SIM SD card ×1, support up to 1T | Dimensions | 277×185×31.6mm (W×H×D) | |
| Standard 3.5mm earphone connector | Weight | 810g | |

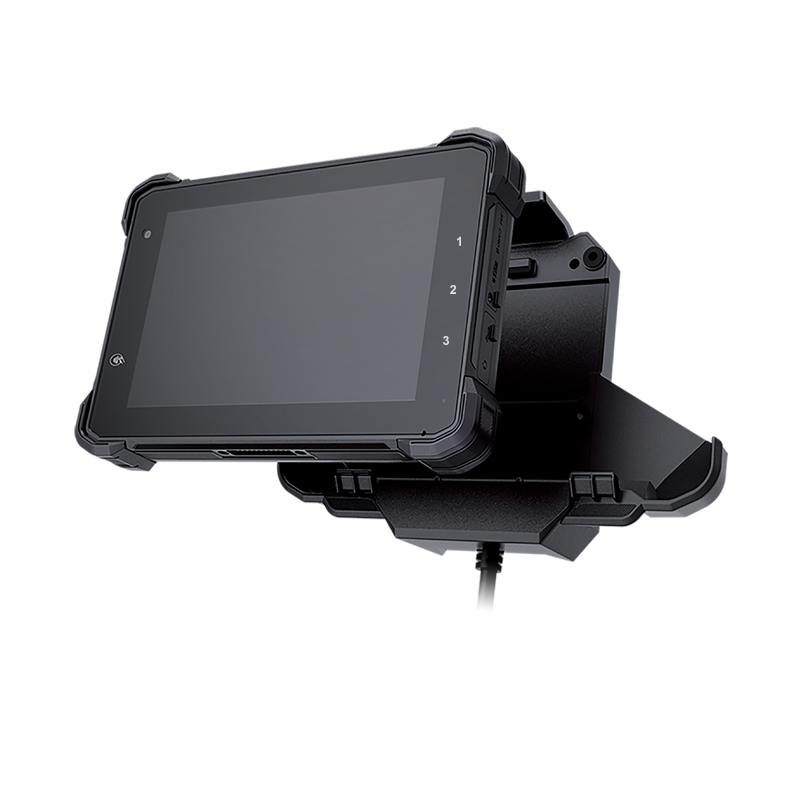

| Extended Cable (Docking Station) | Environment | ||
| Power | ×1 (8-36V) | Drop Test | 1.2m drop-resistance |
| RS232 | ×2 | IP Rating | IP67 (IEC 60529) |
| USB Type-A | USB2.0×1 (can not be used simultaneously with USB Type-C) | Vibration Test | MIL-STD-810G |
| GPIO | Input×3, Output×3 (standard) | Operating Temperature | -10°C ~ 65°C (14°F ~ 149°F) |
Input×2, Output×2 (optional) | Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) | |

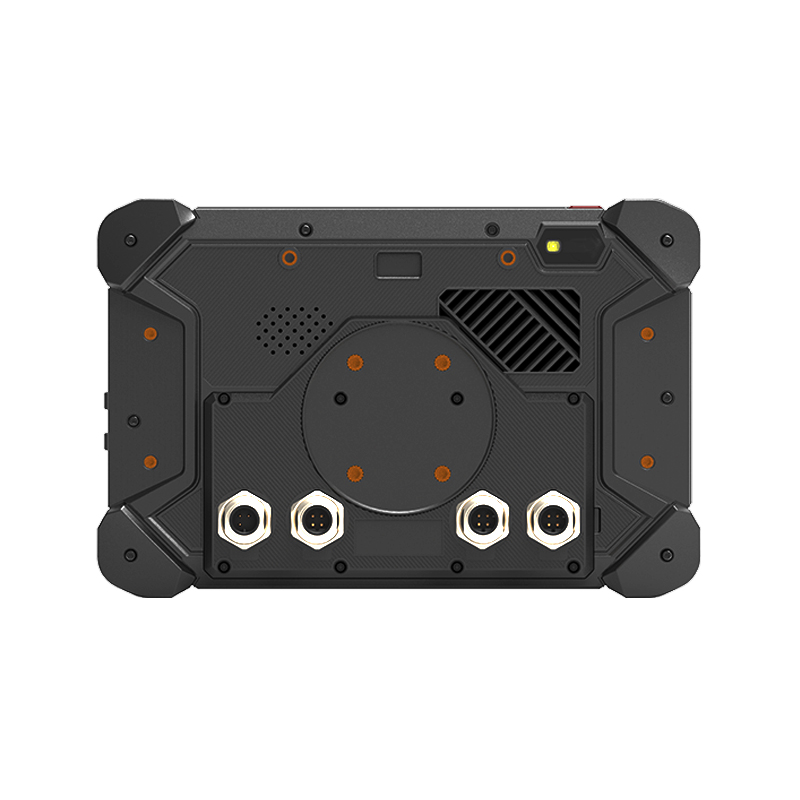

| ACC | ×1 (0-30V) | Extended Cable (M12 Connector) | |
| CAN | ×1 (optional) | RS232 | ×2 |
| AV | ×1 (optional) | USB | ×1 |
| Analog Input | ×2 (optional) | Power | ×1(8-36V) |
| RS485 | ×1 (optional) | GPIO | Input×3, Output×3 |
| RJ45 | ×1 (optional) | ACC | ×1 (0-30V) |
| CANBUS | ×1 (optional) | ||
| RS485 | ×1 (optional) | ||
| RJ45 | ×1 (optional) | ||

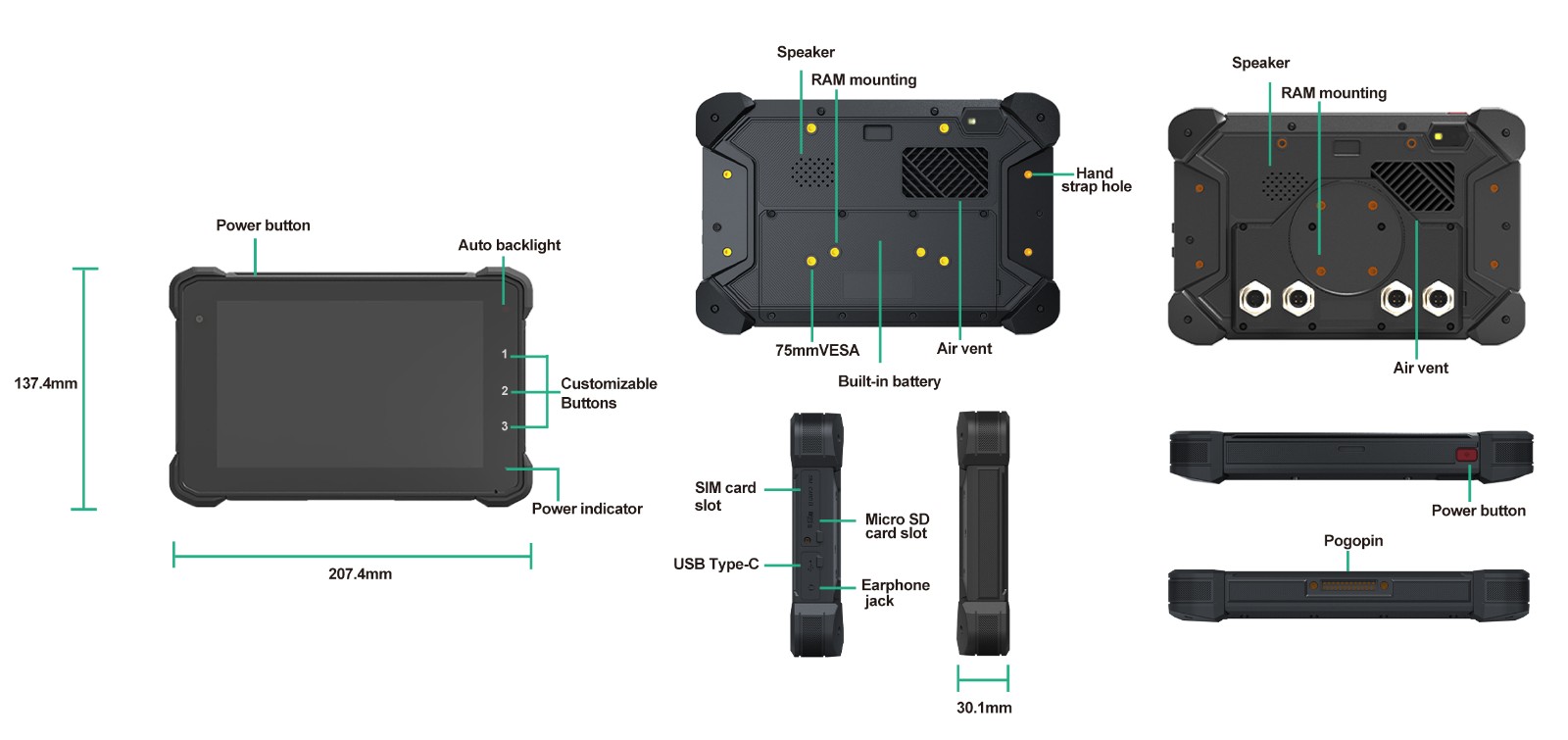

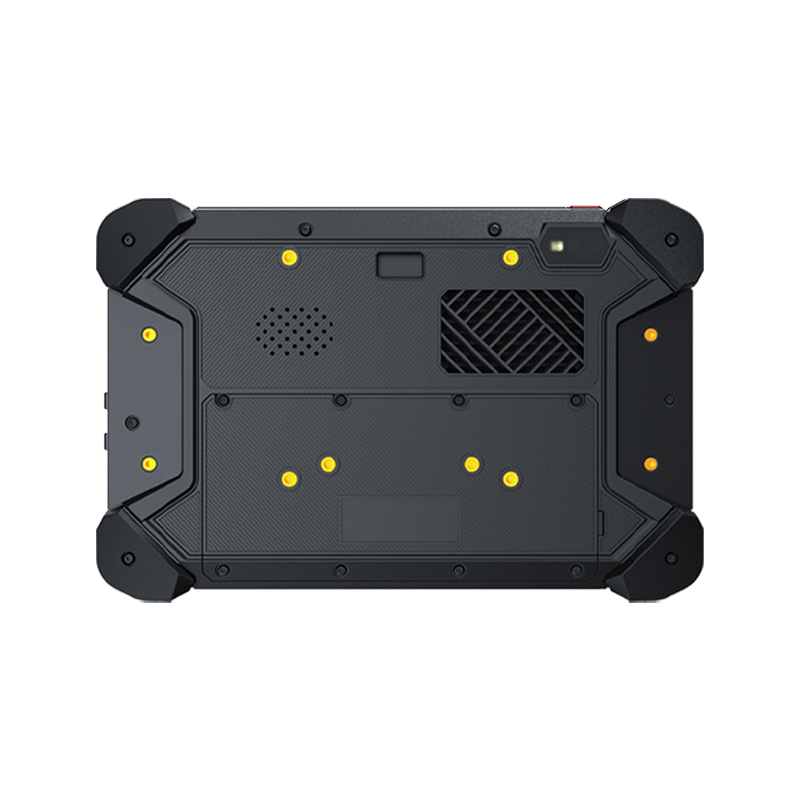

Product Details
Accessories
Torx Wrench (T6, T20) & Screws

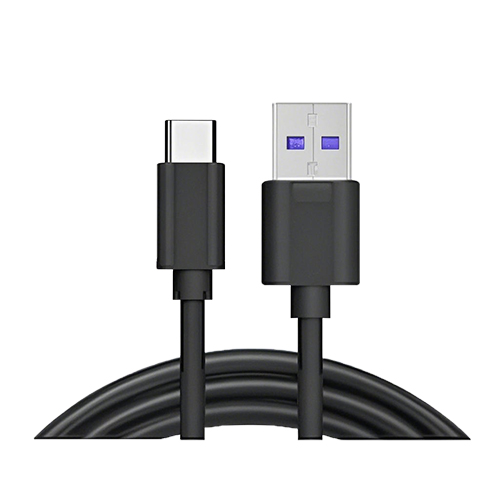

USB Cable
Power Adaptor (optional)
RAM 1'' Double Ball Mount with Backing Plate (optional)
