Product Features
Android 13
Equipped with the powerful new Android 13 system, this rugged tablet boasts richer functions and stable performance to meet a wider range of application requirements.
Real-time Communication
It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT4, WiFi/BT and NFC communication modules, which is convenient for tracking and management.
Rich Functional Interfaces
Support rich interfaces such as RS232, USB, ACC, LAN and CANBUS, and two custom function buttons. Make it highly integrated with rich functions to be applied to various application scenarios.

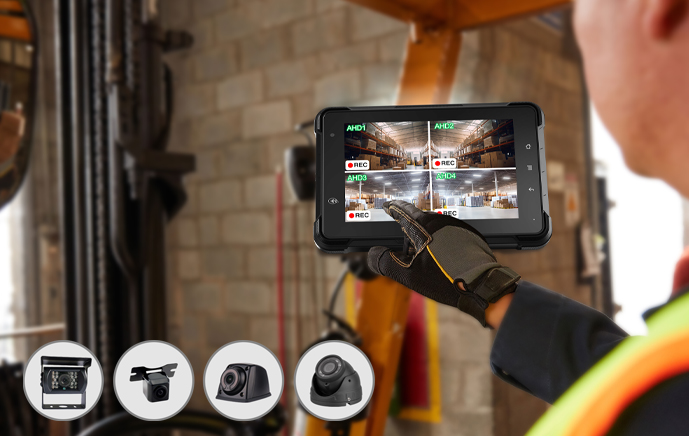

Multi-channel Video Surveillance (Optional)
Supports AHD 720P/1080P video inputs with real-time preview and recording capabilities. The GPIO inputs are configurable for custom screen display switching. A 1TB micro SD card slot is integrated to accommodate high-capacity storage requirements.
ISO 7637 -II
Apply DC8-36V wide voltage power input design. Comply with ISO 7637-II transient voltage protection standard, which can withstand up to 174V 350ms vehicle surge impact.

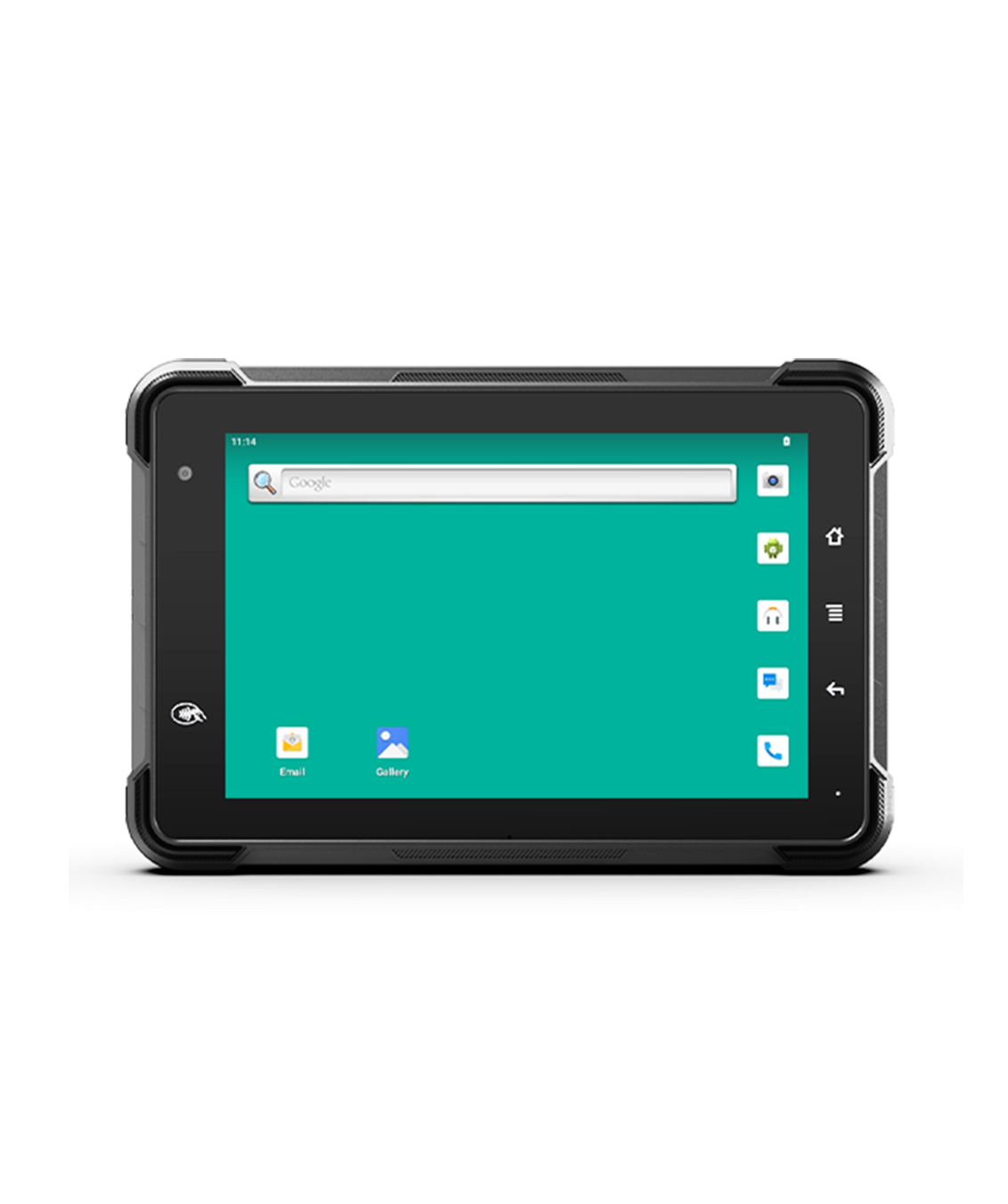

Highlight Screen
The 7-inch 1000-nit display ensures clear visibility and eliminate operation interruption even in the direct and strong sunlight.
Rugged and Reliable Design
Comply with IP67 ratings and MIL-STD-810G standard, ensuring the tablet’s stability and reliability in various harsh environmental applications.
Wide Temperature Design
This tablet can operates in temperatures ranging from -20°C to 65°C and be stored in temperatures from -30°C to 75°C. It can be sold and used in most parts of the world.
Low Power Consumption Design
The tablet has a low power consumption mode design, which can make it enter the sleep mode when it is not working, and be quickly awakened to work when it needs to be used. This function greatly minimize the consumption of battery power.
Mobile Device Management (Optional)
MDM software can be deployed on the tablet, enabling users to conduct more in-depth device and application management.

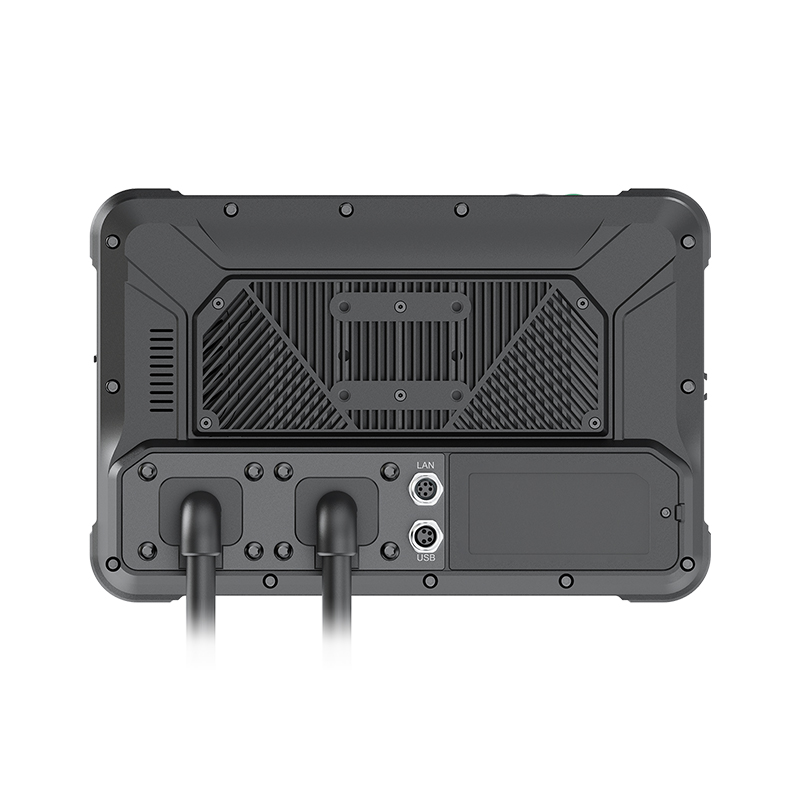

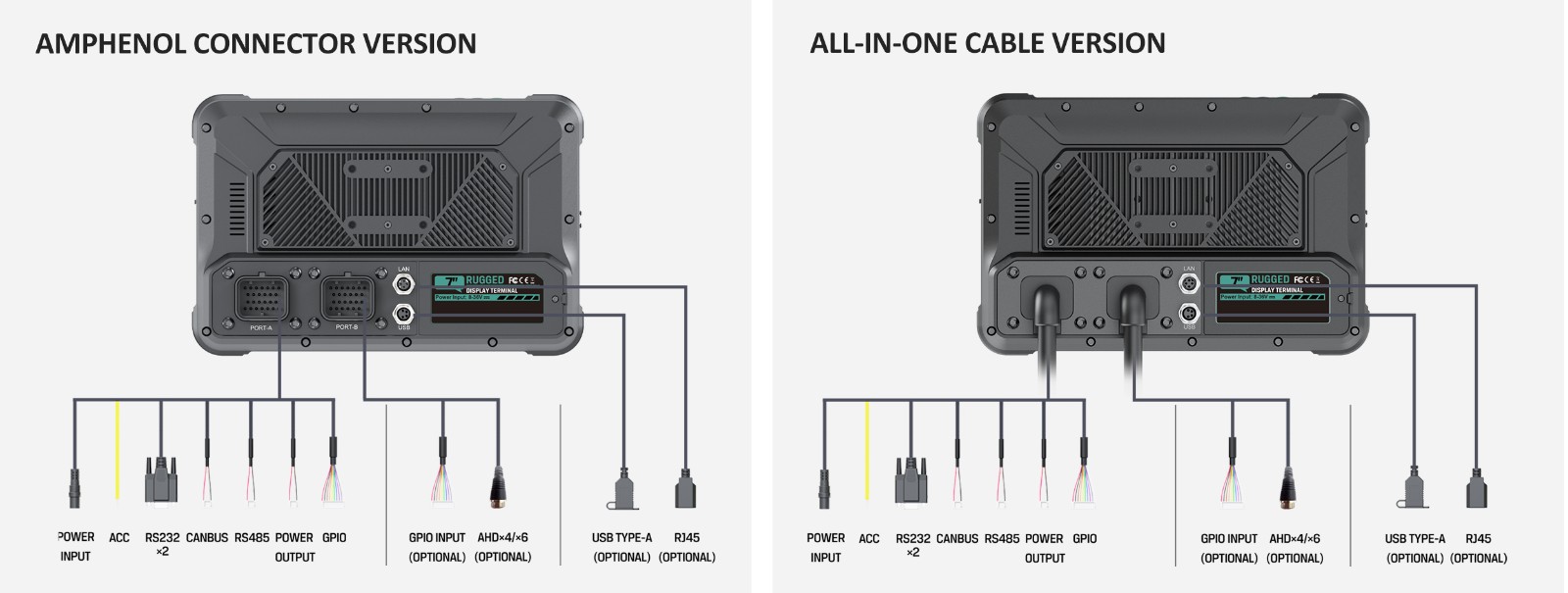

Two Outlet Formats
Specification
| System | Communication | ||
| CPU | Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53, 1.8GHz | GNSS | GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna |
| GPU | Adreno 610 | 2G/3G/4G | US Version: LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 |
| OS | Android 13 | LTE-TDD: B41, Internal Antenna; SMA Antenna (optional) | |
| RAM | LPDDR4 4GB (default)/8GB (optional) | EM Version: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 | |
| Storage | eMMC 64GB (default)/128GB (optional) | LTE TDD: B38/B39/B40/B41 | |
| WCDMA: B1/B2/B4/B5/B8 | |||
| Functional Module | GSM: 850/900/1800/1900 MHz, Internal Antenna;SMA Antenna (optional) | ||
| LCD | 7 Inch, 1280× 800, 1000 nits | WLAN | 802.11a/b/g/n/ac; 2402~2482 MHz, 5180~5825 MHz, Internal Antenna; Fakra Antenna (optional) |
| Screen | Multi-point Capacitive Touch Screen | Bluetooth | 2.1 + EDR/ 3.0/ 4.1 LE/ 4.2 BLE/ 5.0 LE, Internal Antenna;SMA Antenna (optional) |
| Audio | Integrated microphone，Integrated speaker 2W | NFC(optional) Operates at 13.56MHz (HF) | ISO/IEC 14443A, ISO/IEC 14443B PICC mode |
| Sensor | Acceleration, Gyro sensor, Compass, Ambient light sensor | ISO/IEC 14443A, ISO/IEC 14443B PCD mode, designed according to NFC Forum | |
| Button | Power button×1; Customizable buttons×2 | digital protocol T4T platform and ISO-DEP | |
| Camera | Front: 5.0 megapixel camera (optional) | FeliCa PCD mode | |
| On Tablet Interface | MIFARE PCD encryption mechanism (MIFARE 1K/4K) | ||
| USB Type-C | Type-C 3.1 (Type-A and Type-C cannot be used simultaneously), and it does not support to charge the built-in battery. | NFC Forum tags T1T, T2T, T3T, T4T and T5T | |
| Micro SD Slot | Micro SD card slot×1, support up to 1TB | NFCIP-1, NFCIP-2 protocol | |
| SIM Slot | Nano SIM card slot×1(default), eSIM card×1(optional) | NFC Forum certification for P2P, reader and card mode | |
| Earphone Jack | 3.5mm headphone jack compliant with CTIA standard | FeliCa PICC mode | |

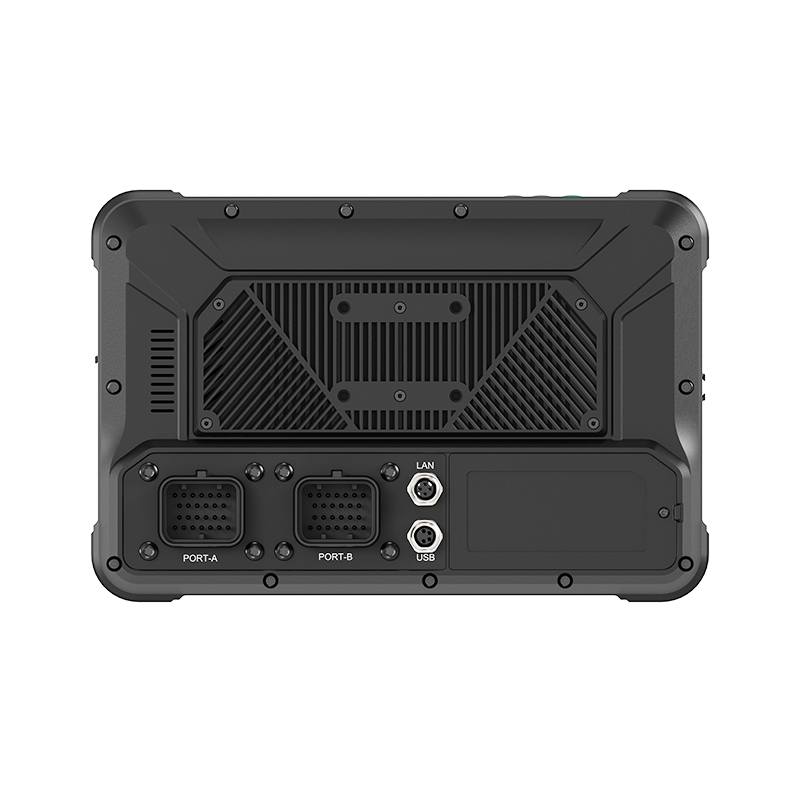

| Connectors(optional) | Port A-26PIN, Port B-26PIN (Amphenol), M8-4PIN×2 | ISO/IEC 15693/ICODE VCD mode | |
| Extended Cable | NFC Forum-compliant embedded T4T for NDEF short record | ||
| Serial Port | RS232_1 ×1 | Physical Characteristics | |
| RS485 | ×1 | Power | DC8-36V (ISO 7637-II compliant) |
| CANBUS | CANBUS_1 ×1 | Battery | 3.7V, 2800mAH removable battery |
| CANBUS_2 ×1 (optional) (Occupy the function of RS232_2) | Dimensions | 210.2×140.2×42.3mm (W×H×D) | |
| GPIO | GPIO Input ×3, GPIO Output ×3 | Weight | 885g |
| ACC | ×1 (0-36V) | Environmental Reliability | |
| RJ45 | ×1 (100 Mbps) (optional) | IP Rating | IP67 (IEC 60529) |
| Power Input | ×1 (8-36V), the system can read the power input voltage | Vibration Test | MIL-STD-810H |
| Power Output | ×1 (8-36V), power input loops out power output,max-current 1A, controlled by system | Operating Temperature | -20°C ~ 65°C (-4°F ~ 149°F) |
| USB TYPE-A | USB-A 2.0 ×1 (optional) (Type-A and Type-C can not be used simultaneously) | Storage Temperature | -30°C ~ 75°C (-22°F ~ 167°F) |
| Video Input | ×4/×6 (optional), AHD 720P/1080P, PAL/NTSC,with 12V 500mA output for AHD camera power. | ||
| GPIO Input | ×6 (optional), Support functions like enlarging the AHD camera preview screens after triggering IO. | ||

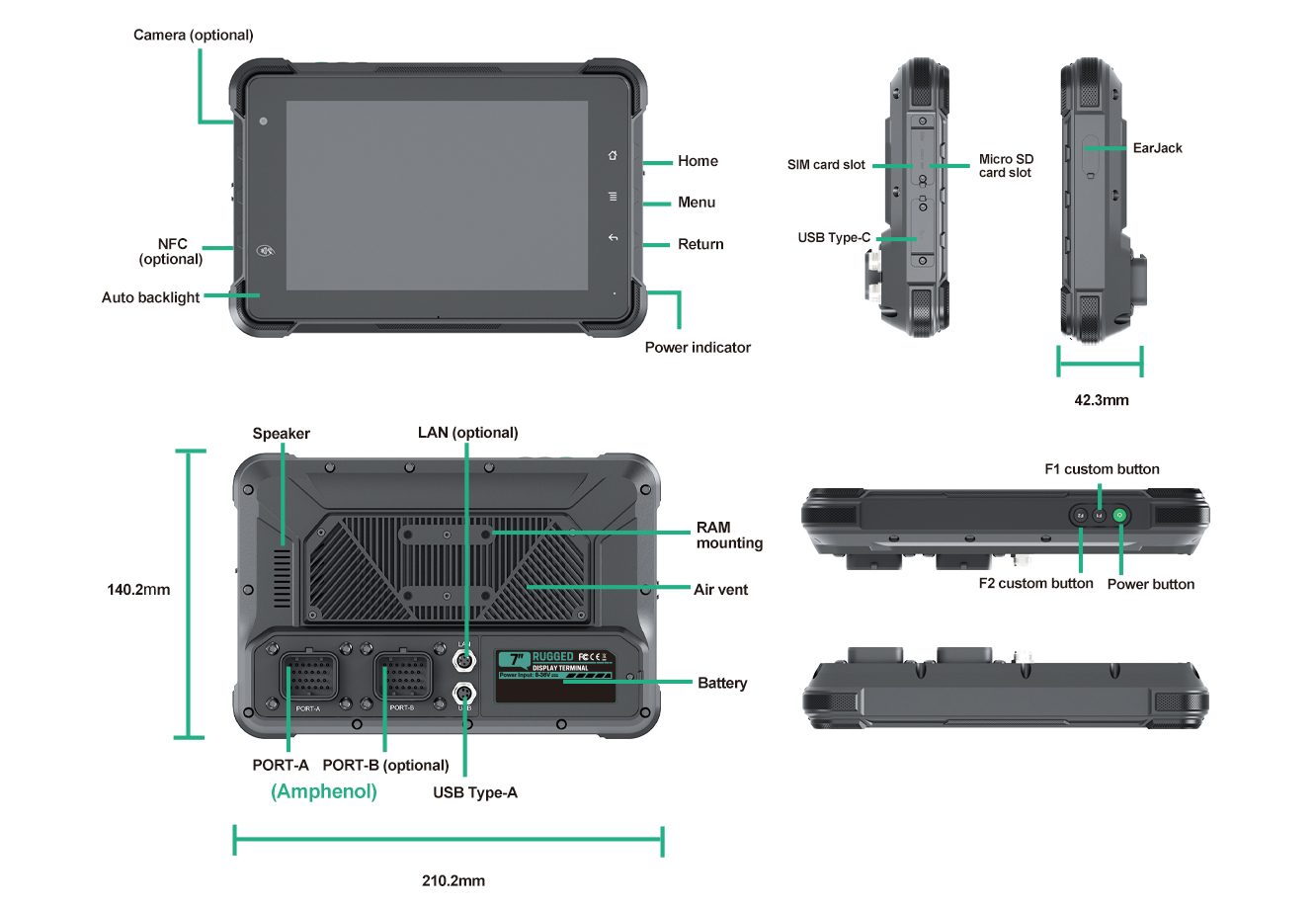

Product Details
Accessories
Port A Cable(optional)
Port B Cable (optional)
Power Adaptor (Optional)

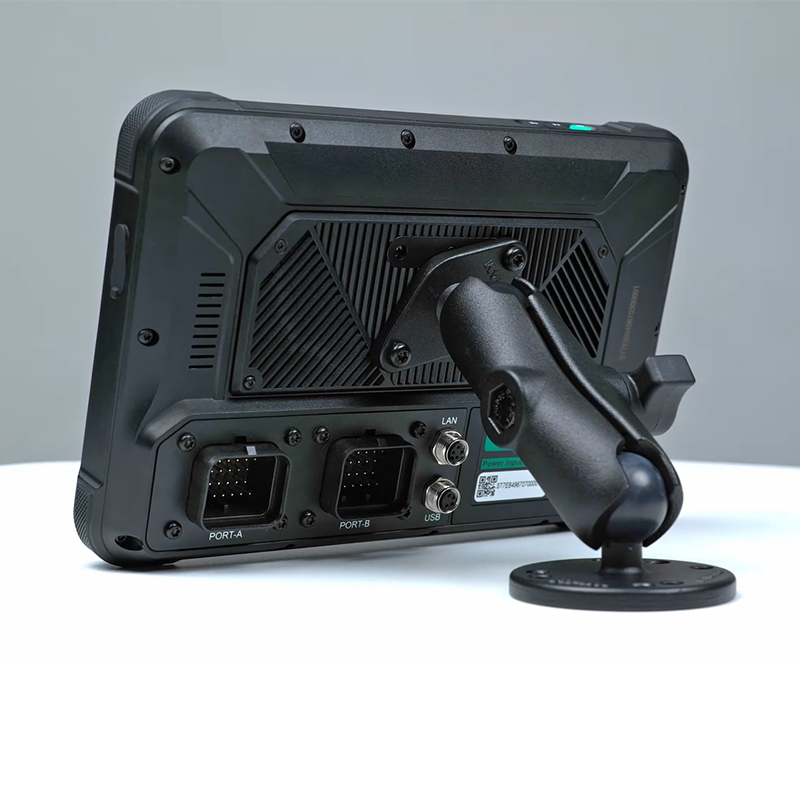

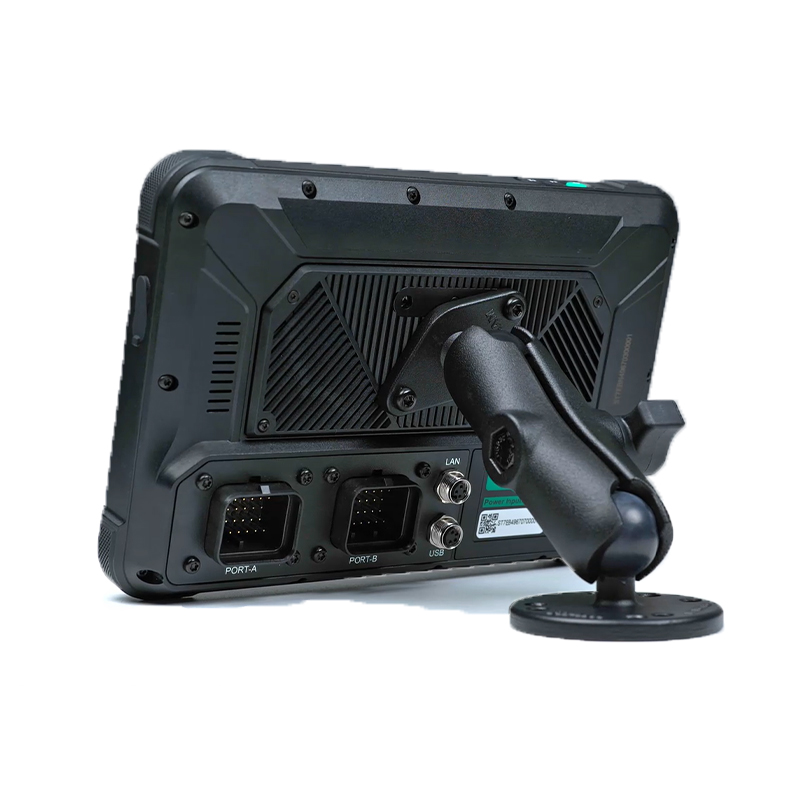

RAM 1 Double Ball Mount with Backing Plate
RJ45 Cable (optional)
SIM-Card-Pin-&-Tweezer-for-Card
Torx Wrench & Screws for RAMSIM Card Plug
USB Type-A Cable (optional)
USB Type-C Cable (Optional)
