Product Features
Qualcomm CPU and Android OS
Built in Qualcomm quad-core CPU and Android operation system, provide a flexible development environment and application.
Rugged Design
Compliance with MIL-STD-810G vibration and shock standard, UV testing standard, suitable for harsh environment and off-road applications.
Water-proof and Oil-proof
Compliance with IP67 and IP69K water-proof and dust-proof rating, resistance to most fluids in industrial environment.
High Precision GNSS System
Support U-blox high precision satellite navigation system including GPS, GLONASS, Galileo and Beidou.
Rich Wireless Communication
Equipped with integrated Wi‑Fi, 4G LTE and Bluetooth, VT-BOX delivers stable wireless connectivity for real‑time vehicle data transmission and remote fleet monitoring.
Specification
| System | Communication | ||
| CPU | Qualcomm Cortex-A7 Quad-core processor, 1.1GHz | GNSS | GPS/GLONASS/BeiDou |
| GPU | Adreno 304 | 2G/3G/4G | US Version: LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26 |
| OS | Android 7.1.2 | WCDMA: B1/B2/B4/B5/B8 GSM: 850/1900MHz | |
| RAM | 2GB | EU Version: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 | |
| Storage | 16GB | WCDMA: B1/B5/B8 GSM: 850/900/1800/1900 MHz | |
| Physical Characteristics | AU Version: LTE FDD: B1/B3/B5/B7/B8/B28 LTE TDD: B40 | ||
| Power | DC 8-36V (ISO 7637-II compliant) | WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz | |

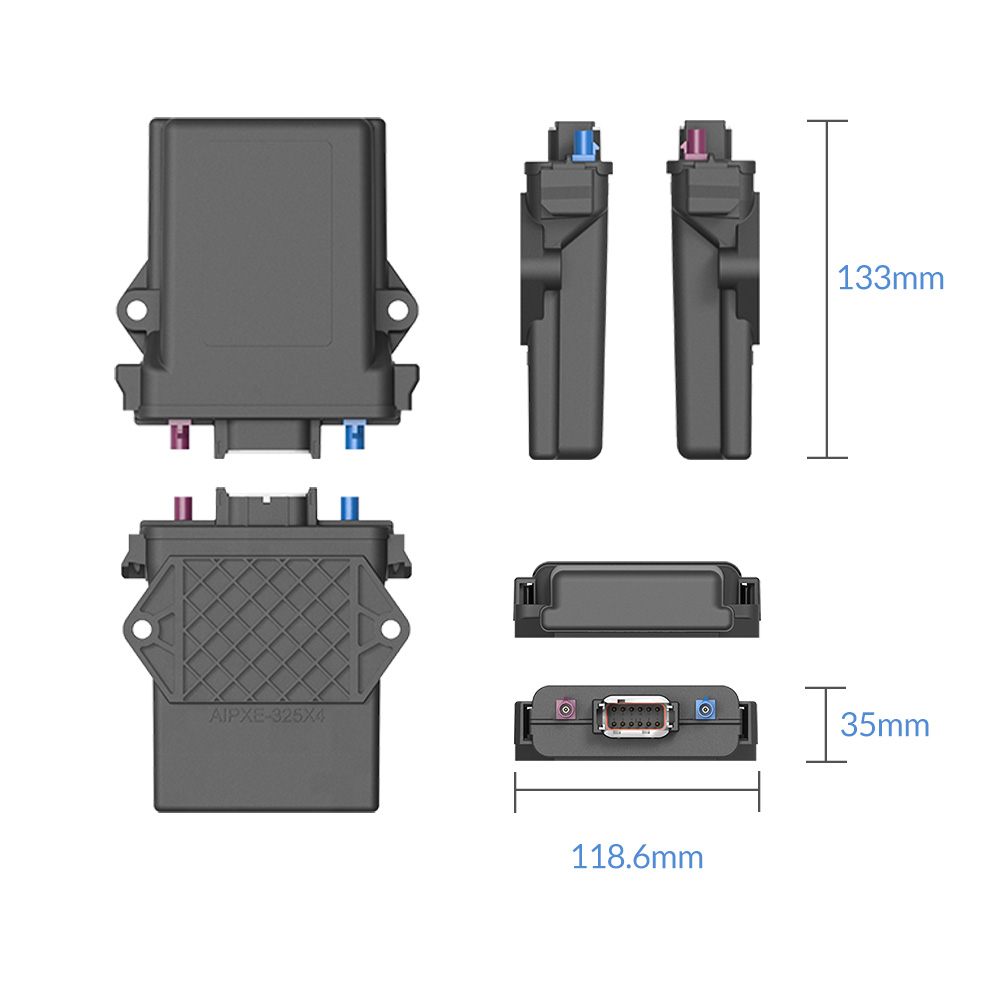

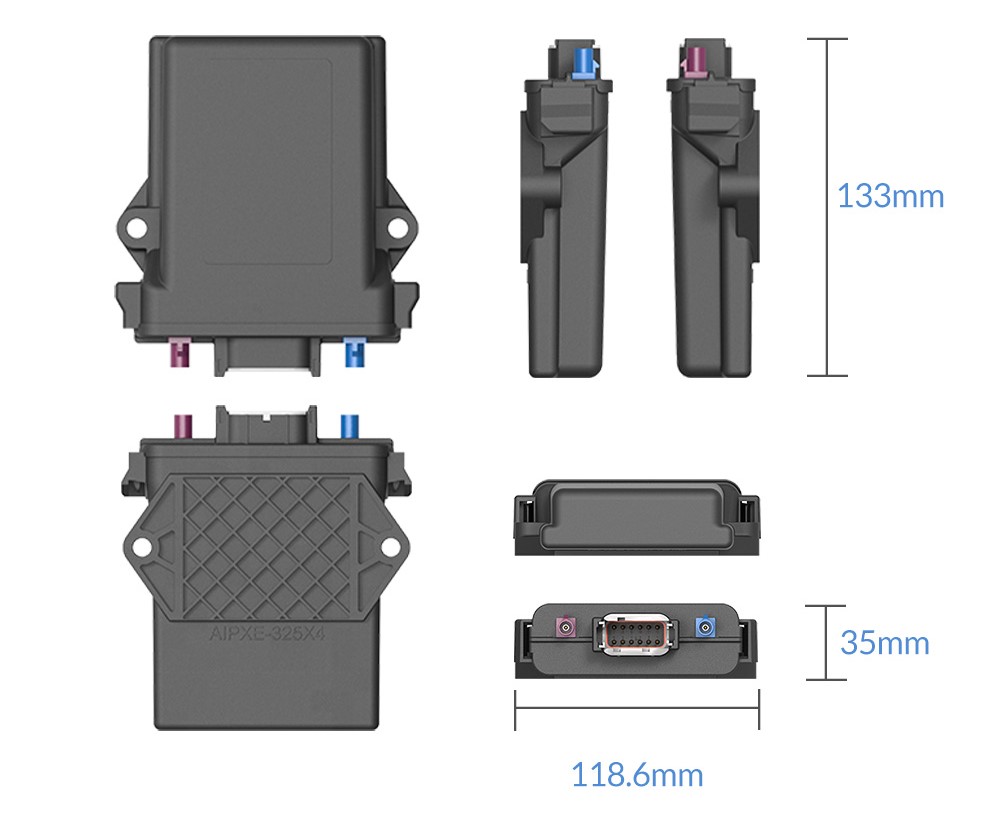

| Dimensions | 133×118.6×35mm | WLAN | 802.11a/b/g/n/; 2.4GHz/5GHz |
| Weight | 305g | Bluetooth | 4.2 BLE |
| Environmental Reliability | Sensor | Acceleration | |
| Drop Test | 1.5m drop-resistance | Extended Interfaces | |
| Vibration Test | MIL-STD-810G | RS232 | ×1 |
| IP Rating | IP67/ IP69K (IEC 60529) | GPIO | ×2 |
| Salt Fog | 96Hr | CANBUS | ×1 |
| UV Exposure | 500Hr | Analog Input | ×1 |
| Operating Temperature | -20° C ~ 70°C（-4°F-158°F） | ACC | ×1 |
| Storage Temperature | -30° C ~80° C（-22°F-176°F） | Power | ×1 |

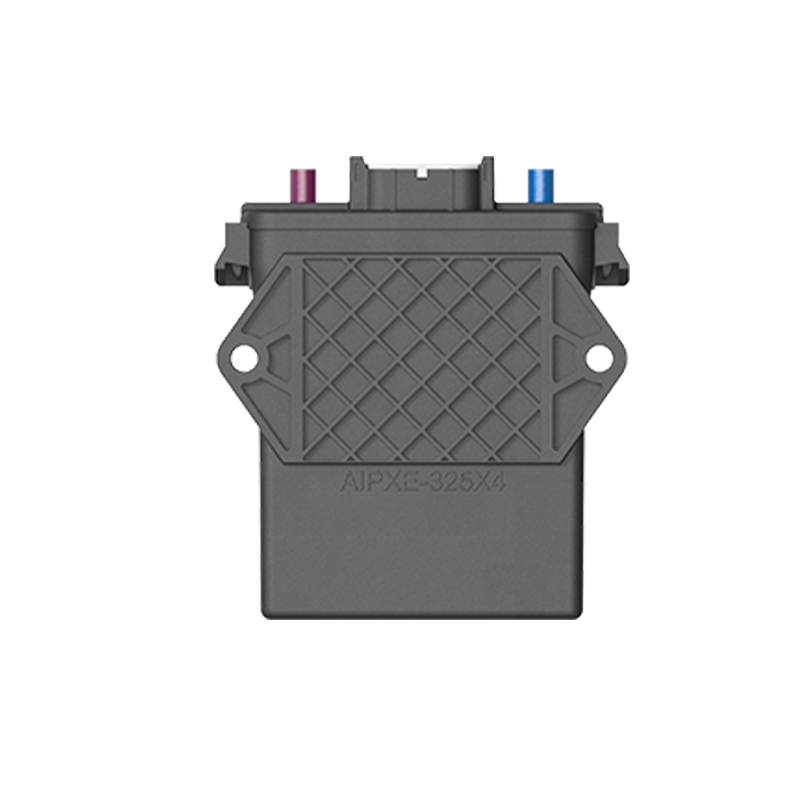

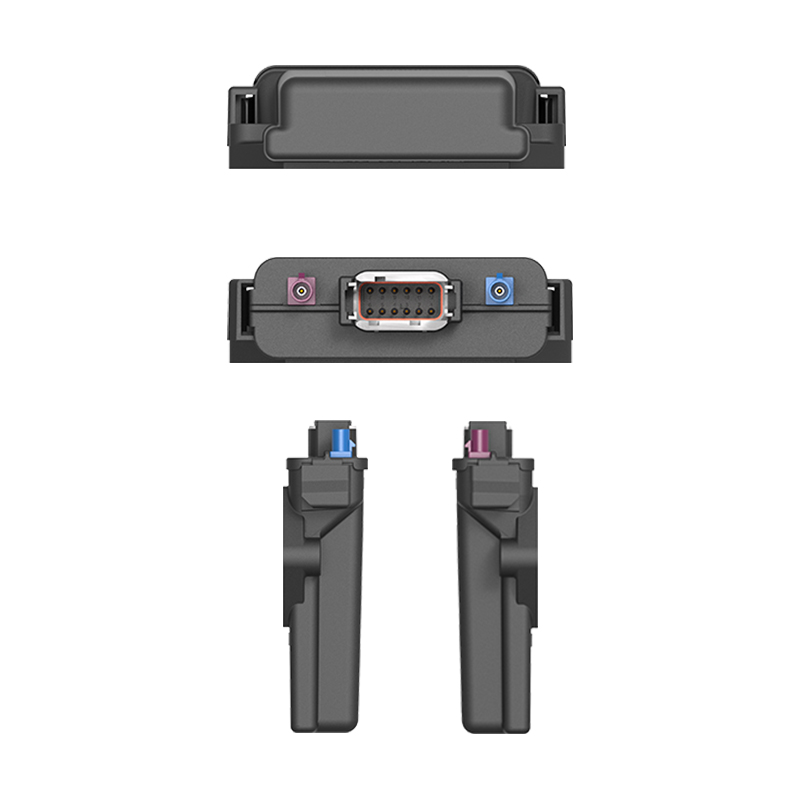

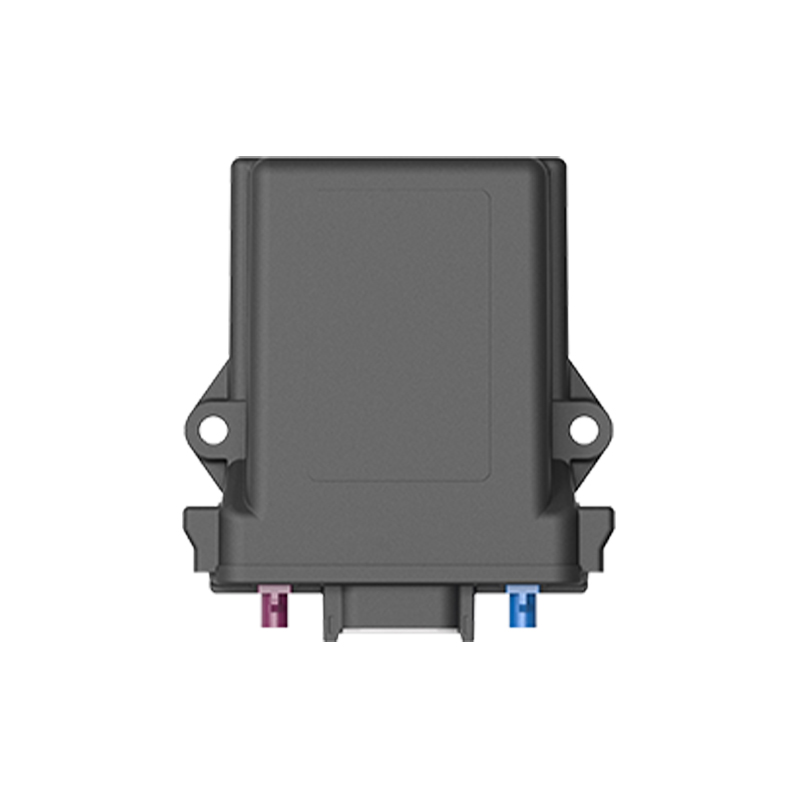

Product Details
Accessories

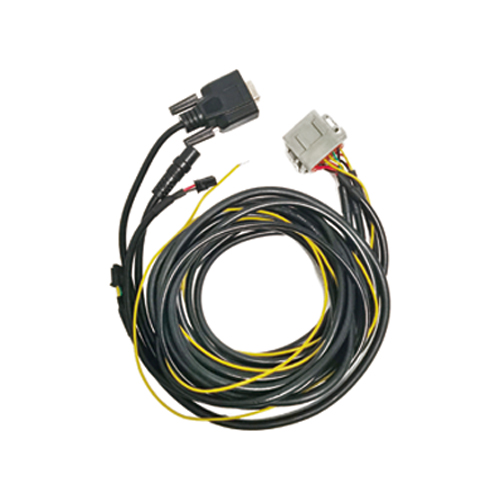

Port A Cable(optional)
Port B Cable (optional)

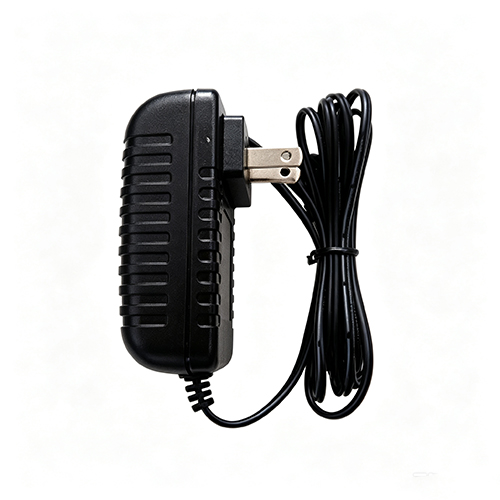

Power Adaptor (Optional)
